W79E2051 DIP20 Nuvoton
2K flash 8051 microcontroller
Product Code 6361
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.160.00/- (0%)
50-99 :
Rs.152.00/- (5%)
100-499 :
Rs.144.00/- (10%)
500-999 :
Rs.140.80/- (12%)
1000+ :
Rs.136.00/- (15%)
Downloads

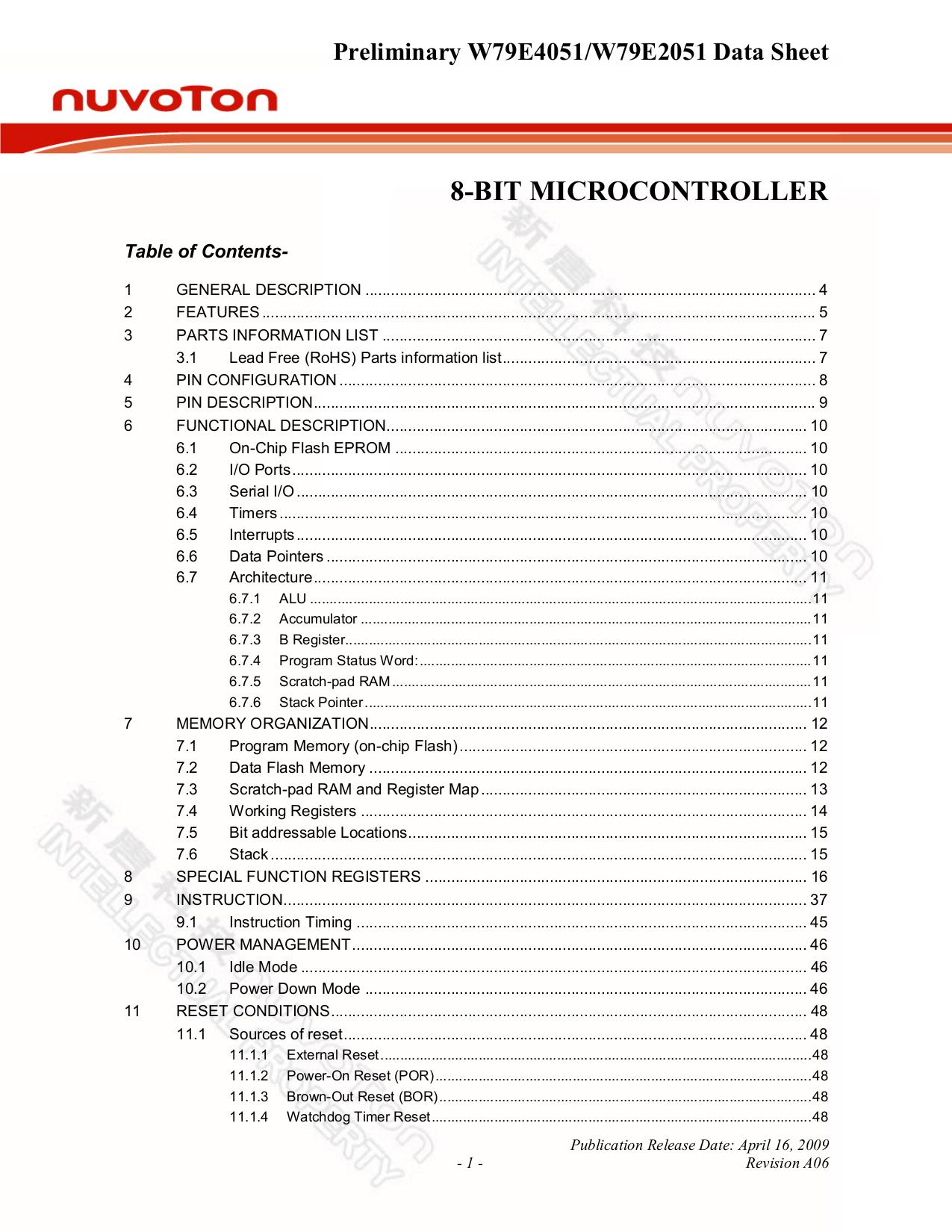

W79E2051 Datasheet
W79E2051 DIP20 Nuvoton
Sunrom Product Code for Ordering:
6361
The W79E2051 MCU is a high speed 4T 8051 MCU operating at 2.4V ~ 5.5V and - 40 ℃ ~ 85 ℃, and provides 22.1184 MHz internal oscillator ( 2 % accuracy at 25 ℃, 5V ) , 128B Data Flash and ICP ( In-Circuit Programming ) . Package type DIP20. Can easily replace Atmel AT89C2051 pin to pin and code to code.
Target Application: Security/Alarm, iPod Docking, Projector, DVD Player, etc.
Key Features:
• Core
- 4T 8051 processor
- Max frequency of 24 MHz
- Operating voltage: 2.4V to 5.5V
- Temperature range: - 40 ℃ ~ 85 ℃
• Memory
- 2 KB of flash memory
- 256 B of SRAM
- 128 B of Data Flash
- ICP ( In-Circuit Programming )
• Connectivity
- One UART
• Clock Control
- 4 to 24 MHz crystal oscillator
- Internal 22.1184 MHz ( 2 % accuracy at 25 ℃, 5V )
- Internal 22.1184 or 11.0592 MHz configurable
