SW520D SW-520D Tilt Sensor

Contact comes ON or OFF based on sensor position vertical or horizontal

Product Code 5593

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 390 nos.
Factory Leadtime for more quantity: 15 days
Quantity Pricing
Quantity :
Price (Discount%)
1-4 :
Rs.10.62/- (0%)
5-9 :
Rs.10.30/- (3%)
10-24 :
Rs.9.88/- (7%)
25-49 :
Rs.9.56/- (10%)
50-74 :
Rs.9.35/- (12%)
75-99 :
Rs.9.03/- (15%)
100-249 :
Rs.8.71/- (18%)
250-499 :
Rs.8.50/- (20%)
500-999 :
Rs.8.28/- (22%)
1000+ :
Rs.7.97/- (25%)

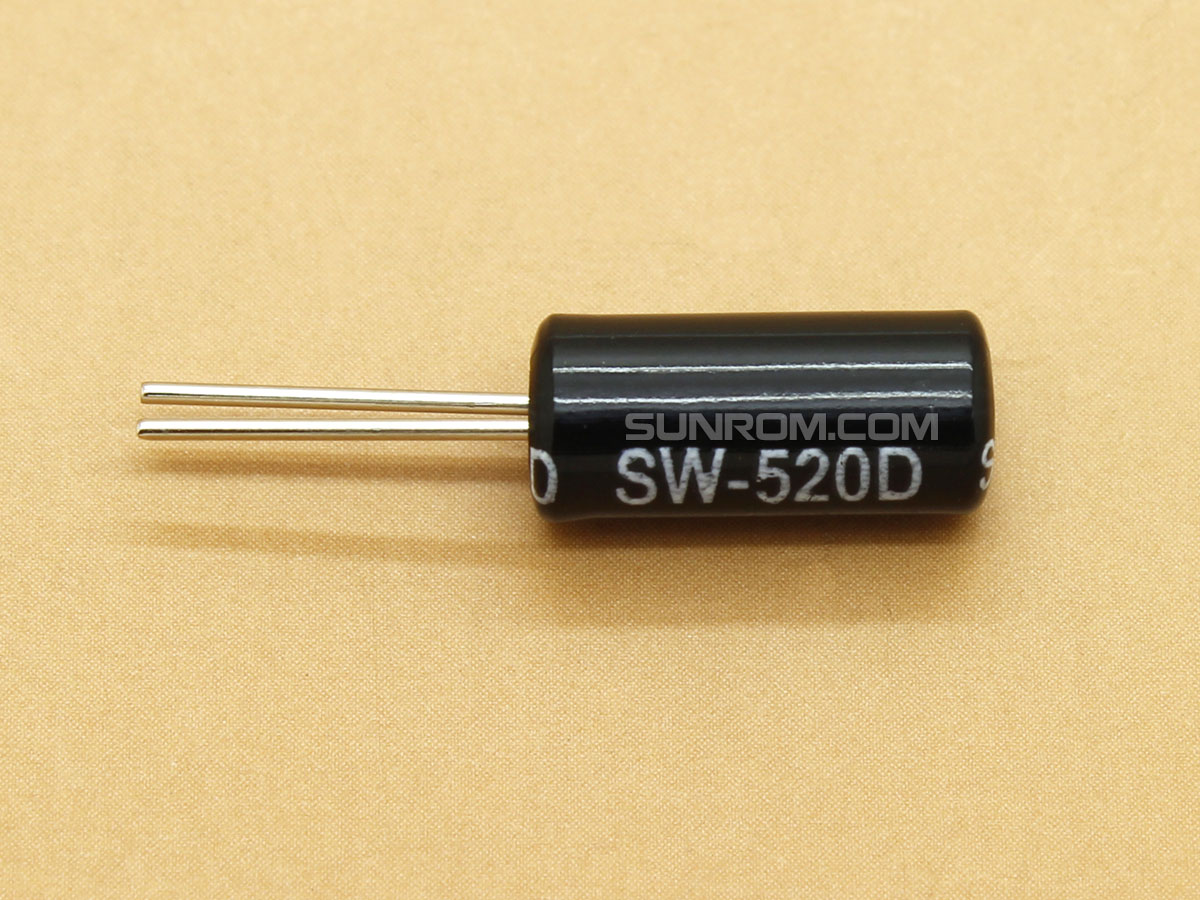

SW520D SW-520D Tilt Sensor
Sunrom Product Code for Ordering:
5593

The tilt sensor is a component (switch) that can detect the orientation of an object (upright or not). It is equivalent to a pushbutton activated through its physical orientation.  It contains a metallic ball inside that will commute the two pins of the device from CLOSED to OPEN if the sensor exceeds a certain angle and viceversa. Only when the tilt sensor is in its upright position, metallic balls inside the tilt sensor bridges the two contacts, completing the circuit. When the sensor is tilted beyond the sensivity range, the contacts moves away, and thus opens the circuit.

Features:

  • Detect orientation or inclination
  • Small and inexpensive
  • Low-power and easy-to-use
  • If used properly, they will not wear out.
  • Sensitivity range: > +-15 degrees
  • Lifetime: 50,000+ cycles (switches)
  • Power supply: Up to 24V, switching less than 5mA

Dimensions:

  • Diameter: 5.2mm
  • Height: 11.5mm (excluding leads)
