3.3V Stable Output DC-DC Boost from Input 0.8V-5V Battery
Easy get stable 3.3V from various battery inputs
Product Code 7198
Available
We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 28 nos.
Factory Leadtime for more quantity: 15 days.
If you order more than 28, We will send two packages, right now available stock and remaining in 15 days
Quantity Pricing
Quantity :
Price
1-49 :
Rs.160.00/-
50-99 :
Rs.152.00/-
100-499 :
Rs.144.00/-
500-999 :
Rs.140.80/-
1000+ :
Rs.136.00/-
Downloads

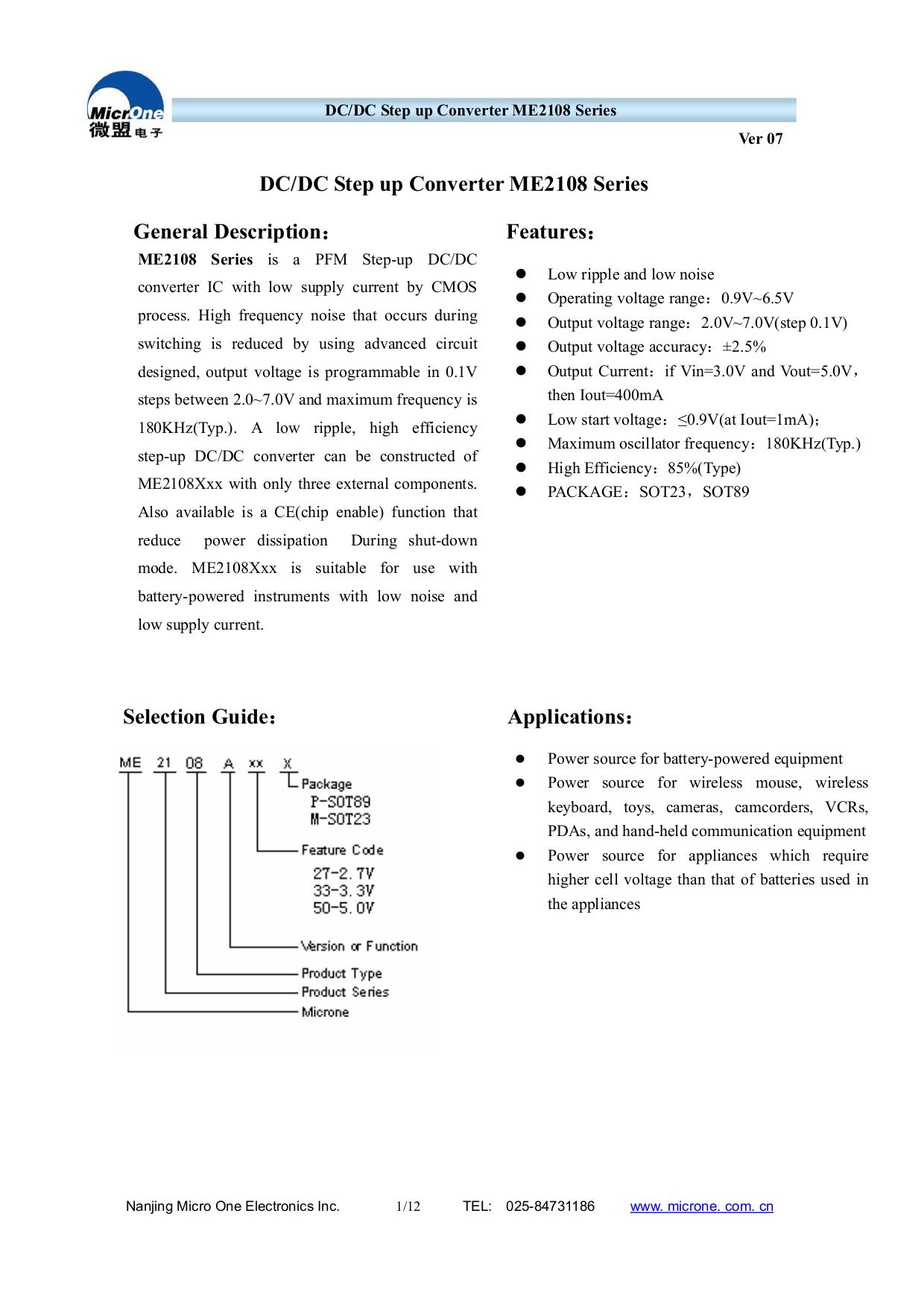

ME2108 Datasheet
3.3V Stable Output DC-DC Boost from Input 0.8V-5V Battery
Sunrom Product Code for Ordering:
7198
Mini ultra small boost converter module based on ME2108A50PG Eqv. to BL8530
Function parameter: 3.3V output version:
Input voltage 0.8-5V; output voltage 3.3V
Maximum output current: 480 mA
Start voltage 0.8V, output current 7MA
input 1-1.5V, output 3.3V 40-100MA;
input 1.5-2V, output 3.3V 100-150MA;
input 2-3V , output 3.3V 150-380MA;
input over 3V, output 3.3V 380- 480MA;
DC-DC boost converter module, operating frequency 150KHZ, typical conversion efficiency 85%
Dimensions: 11mm x 10.5mm x 7.5mm (very small)
Weight: approx. 1g (very light)
Pins 2.54MM pitch
