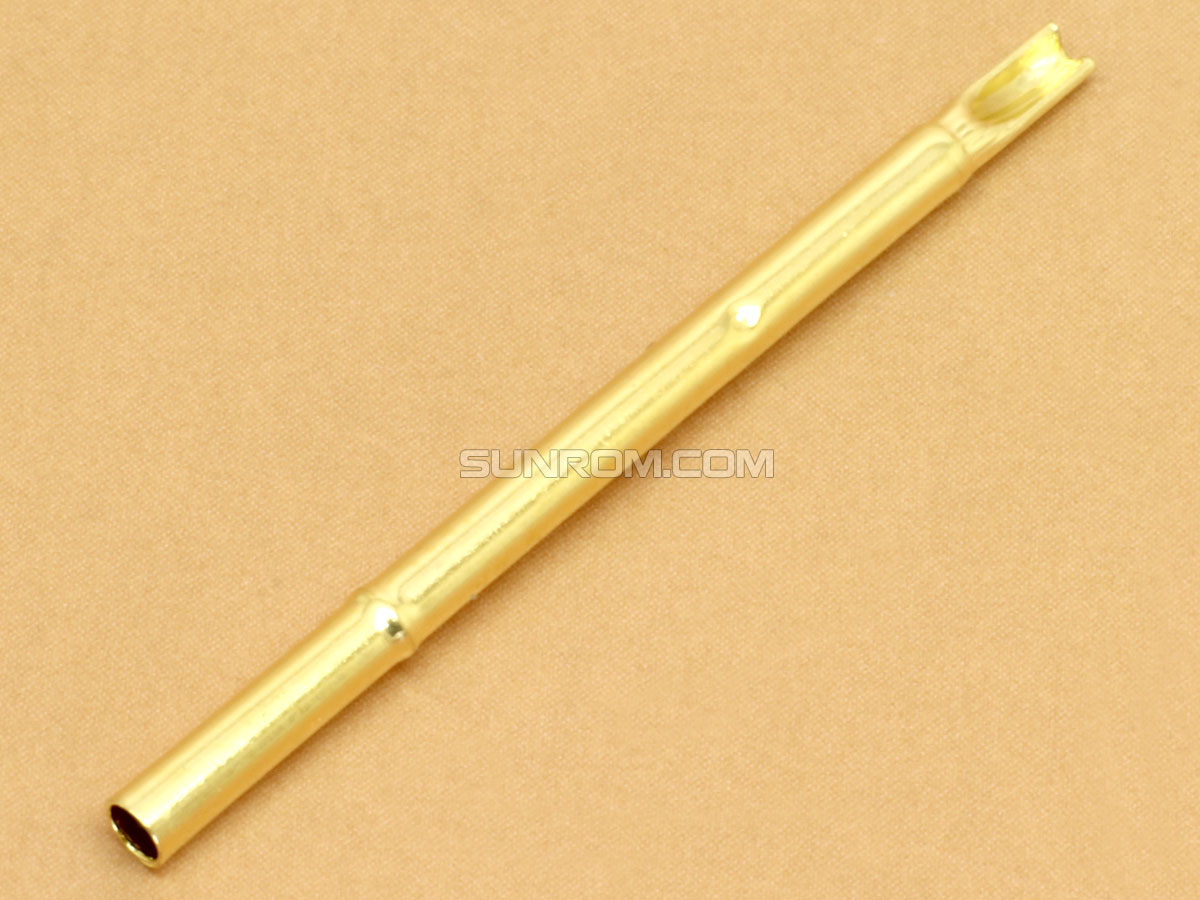

Receptacle Female for Test Probe Diameter 1.36mm Wire Solder

Hollow cavity accepts spring loaded male test probe so you can easily remove and replace in a test jig. One side of female is fixed in tests jig soldered with wires. The male probe just press fit inside the cavity for easy removal and maintenance

Product Code 6142

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 1000 nos.
Factory Leadtime for more quantity: 15 days
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.11.80/- (0%)
50-99 :
Rs.11.21/- (5%)
100-499 :
Rs.10.62/- (10%)
500-999 :
Rs.10.38/- (12%)
1000+ :
Rs.10.03/- (15%)
Receptacle Female for Test Probe Diameter 1.36mm Wire Solder
Sunrom Product Code for Ordering:
6142
Diameter
1.36 mm
Polarity
Female
Testing Pitch
2.54 mm

For touch contact Testing and Programming of Devices in Production at low cost. All you have to do is connect this pogo pins to base or programmer and leave a pads on final target board. When testing make contact and do testing quickly. This what we do for our PIC based products, We just give 6 pin pads on target board and make contact via PICKIT3 to which these pogo pins are connected.

These make good electric contact and has long term durability. Its is a flexible solution for both DIY users and production application. It is able to be soldered to various cables for LCDs / programming PIC / Atmel MCUs on circuit boards.

It can be connected with programmers ISP for production Contact Programming.

Real World Examples

Example of Touch ISP Programming through POGO pins.
