DC-DC Step Down 3A - MP2315
In = 4.5V-24V / Out = 0.8V-17V(Adjustable) and Fixed 1.8V 2.5V 3.3V 5V 9V 12V @ 3A Switching Regulator, efficiency 97.5%, LM78xx pinout for replacement
Product Code 5947
Available
We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 29 nos.
Factory Leadtime for more quantity: 15 days.
If you order more than 29, We will send two packages, right now available stock and remaining in 15 days
Quantity Pricing
Quantity :
Price
1-9 :
Rs.142.00/-
10-24 :
Rs.134.90/-
25-49 :
Rs.132.06/-
50-99 :
Rs.129.22/-
100-249 :
Rs.127.80/-
250-499 :
Rs.126.38/-
500-999 :
Rs.123.54/-
1000+ :
Rs.120.70/-
Downloads
MP2315 Datasheet
DC-DC Step Down 3A - MP2315
Sunrom Product Code for Ordering:
5947
Pinout same as LM78xx series for direct replacement.
Optional EN pin(can leave floating), To enable, disable the module, default enabled with on board pull up. To disable output, put this pin to ground. To enable put this pin to 2-5V high level.

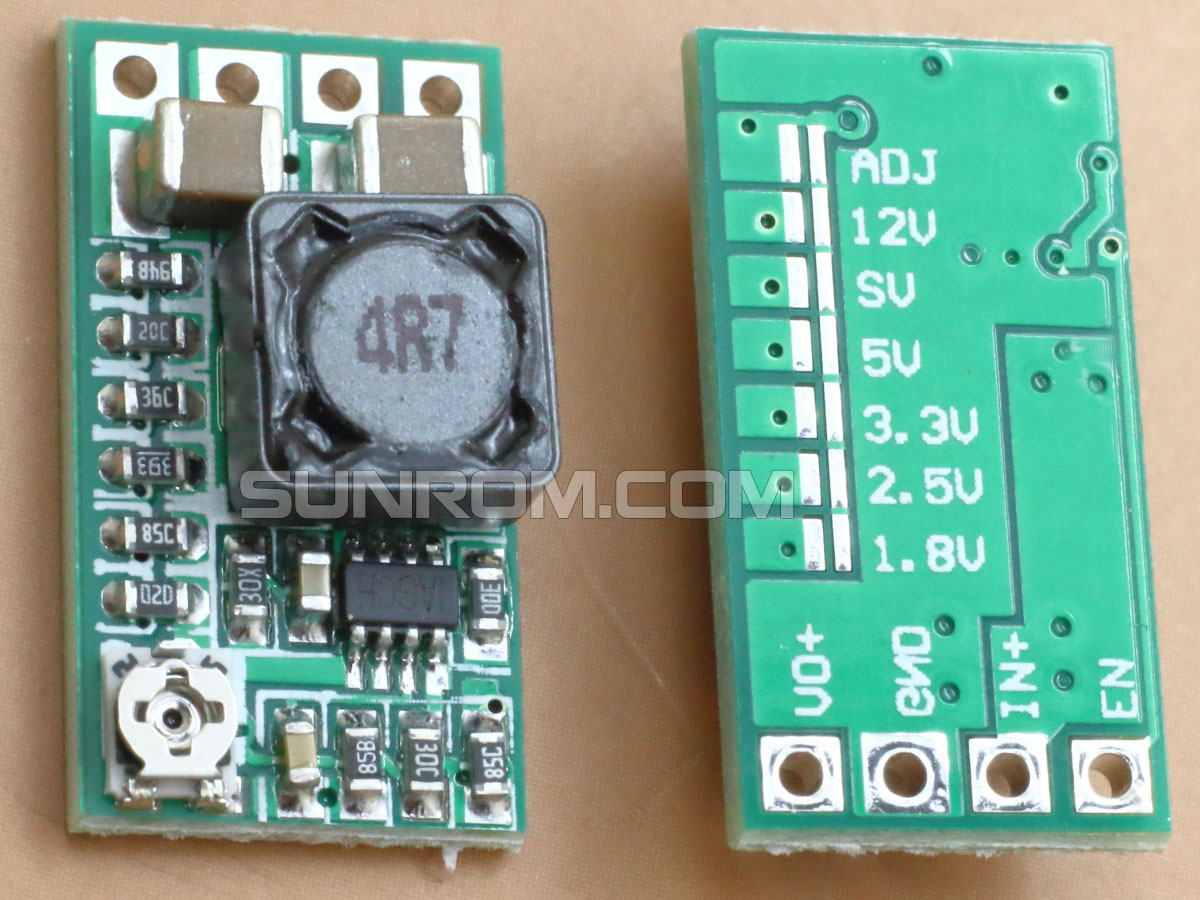

As shown below module is provided in ADJ mode where on board preset is used to adjust output voltage. If you want to use fixed voltage, then cut this adj track and short the output voltage jumper you need.
