Mini USB-B SMD Connector

Popular in small USB devices

Product Code 4293

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.

Real Time Availability

Ready Stock: 4203 nos. Factory Leadtime for more quantity: 15 days.

If you order more than 4203, We will send two packages, right now available stock and remaining in 15 days

Quantity: Price: Rs.18.00/-

Quantity Pricing

Quantity :

Price

1-49 :

Rs.18.00/-

50-99 :

Rs.17.10/-

100-499 :

Rs.16.20/-

500-999 :

Rs.15.84/-

1000+ :

Rs.15.30/-

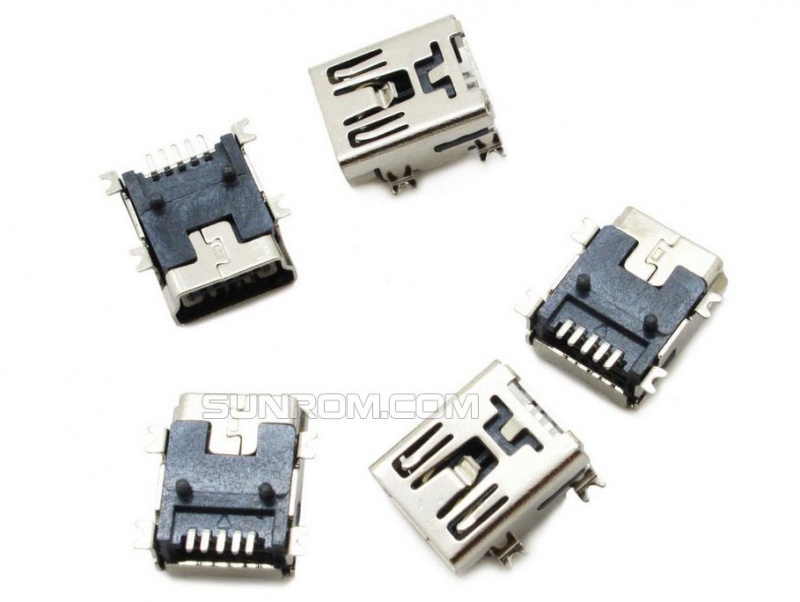

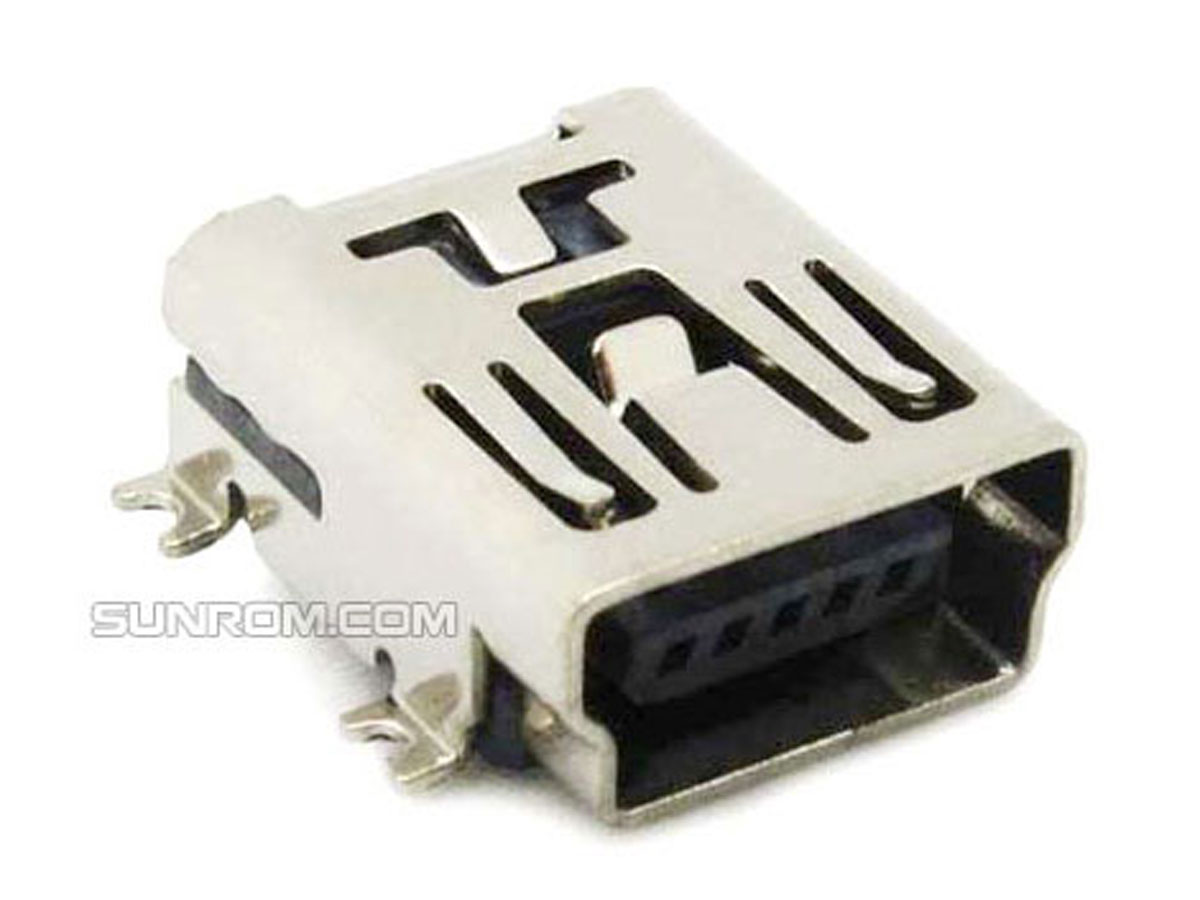

Mini USB-B SMD Connector

Sunrom Product Code for Ordering:

4293

Polarity

Female

Pins

Type

Mini USB

USB Type ‘Mini-B’ Female SMD connector. This is a 5-pin Mini-B surface mount connector commonly found in MP3 players, media/disk readers, USB hubs, pretty much anything small and USB.

Mini-B Socket PCB SMT Mount 5 Pins Connector with the two little plastic pins to retain on the board, (can be trimmed of with a knife if not needed).

Always handy - these 5 pin sockets are surface mount, and commonly used on smaller size USB gear.

Features

Connector Type:USB
Gender:Socket
Ways, No. of:5
Termination Method:Solder
Mounting Type:Surface Mount
Current Rating:0.5A
Voltage Rating, AC:5V
Voltage, Test:100V

Pinouts
