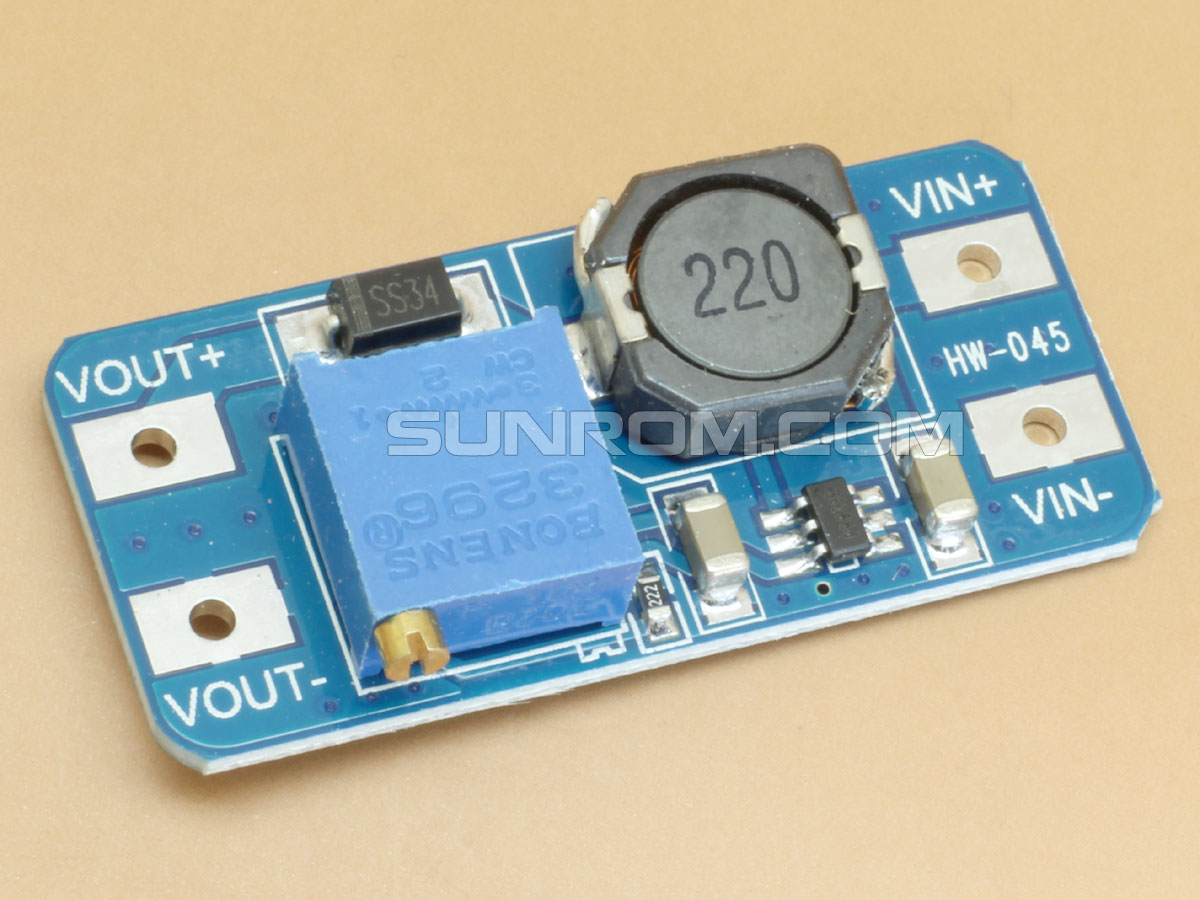

DC-DC Boost 2A - MT3608

In = 2-24V / Out = 5-28V @ 2A Switching Regulator (Boost = Output Voltage has to be higher than input voltage), Good for getting stable 3.3V or 5V output from 1xAA or 2xAA or Li-ion batteries

Product Code 4576

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 77 nos. Factory Leadtime for more quantity: 15 days.
If you order more than 77, We will send two packages, right now available stock and remaining in 15 days
Quantity: Price: Rs.165.00/-
Quantity Pricing
Quantity :
Price (Discount%)
1-9 :
Rs.165.00/- (0%)
10+ :
Rs.156.75/- (5%)

Downloads

MT3608 Datasheet
DC-DC Boost 2A - MT3608
Sunrom Product Code for Ordering:
4576

Specifications

  • 2V to 24V input voltage with output boost 5V to 28V adjustable
  • Maximum output current: 2A
  • Input voltage: 2V ~ 24V
  • Maximum output voltage: > 5V - 28V
  • Efficiency: > 93%
  • Input voltage should not exceed the maximum input voltage
  • Peak current output current should not more than 2A
  • Output voltage should always be higher than Input voltage
  • PCB Size: 36 mm * 17 mm * 14 mm

How to use

  • Connect the the IN+ and IN- of the module with 2~24V
  • Adjust the potentiometer to adjust the output voltage. Please note that the output voltage should be higher than the input voltage.
