Breakout PCB for ESP8266 WIFI ESP-07 ESP-12

Provides 2.54mm(0.1") spacing for interfacing, Suitable for breadboard mounting and easy interfacing during development. Header Strip included

Product Code 4431

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 19 nos.
Factory Leadtime for more quantity: 15 days
Breakout PCB for ESP8266 WIFI ESP-07 ESP-12
Sunrom Product Code for Ordering:
4431

This ESP8266 Serial Wireless WIFI Module Adapter PCB is an Adapter PCB Plate for ESP-07, ESP-08, ESP-12E ESP8266 SMD ESP8266 Module. These SMD ESP8266 modules have an unfriendly pin pitch. But by use of this adapter PCB, you can solder ESP-07, ESP-08 or ESP-12E modules and can use your favorite ESP8266 SMD modules on breadboards or on perforated boards.

ESP8266 adapter plate compatible with the ESP07, ESP08, and ESP12. Because soldering the ESP modules is not always easy, this adapter plate is available. The WiFi module can be soldered to the PCB, wherein they are connected to connection points clearly indicated by headers.

Features

  • It features reserved land-pattern for the 3.3V regulator
  • It has Pinouts on the top layer in black color.
  • Compatible with Latest ESP-12F ESP8266 Wifi Module
  • It includes a 10K pull-up resistor to be soldered on PCB.

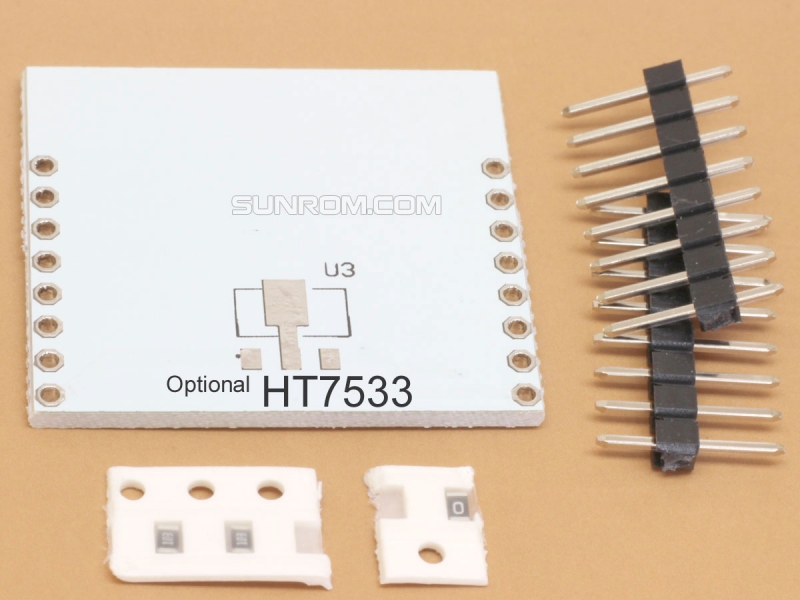

On the bottom layer, there is a land-pattern for a 3.3V regulator. To use 3.3V regulator you will need to desolder 0 Ohm jumper resistor R2. The VCC pin then becomes 5V to the 30V power input. Else with R2 resistor you have to input 3.3V at VCC pin.
