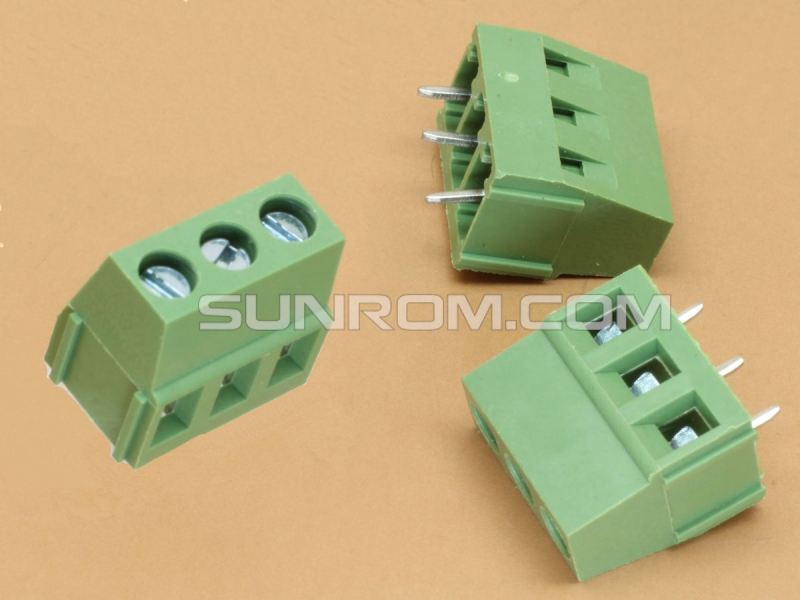

3P 5mm 10A Screw Terminal Heavy

PCB Mounting for wire connections, Built in side groves to stack next to each other during long application.

Product Code 6557

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.15.00/- (0%)
50-99 :
Rs.14.25/- (5%)
100-499 :
Rs.13.50/- (10%)
500-999 :
Rs.13.20/- (12%)
1000+ :
Rs.12.75/- (15%)
3P 5mm 10A Screw Terminal Heavy
Sunrom Product Code for Ordering:
6557
Connections
3
Pitch
5 mm
Current
10 A

Dimensions

BOM

No.

ITEM

Origin

Material

Surface

QTY

1

Housing

Own

making

PA66(UL 94V-0)

——

1

2

screw

outsourcing

Steel(A3)

Zinc plated

2-24

3

Wire Cage

outsourcing

Brass or Stee

Nickel Plated

2-24

4

Pin header



Own

making

Brass

Tin Plated

2-24

Technical data

  Wire range:22-12AWG 2.5mm²

  Voltage&Current:300V  10A

  Torque:0.4N.m

  Withstand Voltage:AC2000V 60s

Environment

  Operating  Temperature:-40℃ ~ +105℃

  Pollution  Level:Ⅲ

Inspection standards

  GBT 2828.1-2012

Use

  Wire Stripping  Lenght:5-6±0.5mm

  Wave Soldering:260℃/5s

  Hand Soldering:soldering iron350℃/10s
