XC6206P332MR (662K)

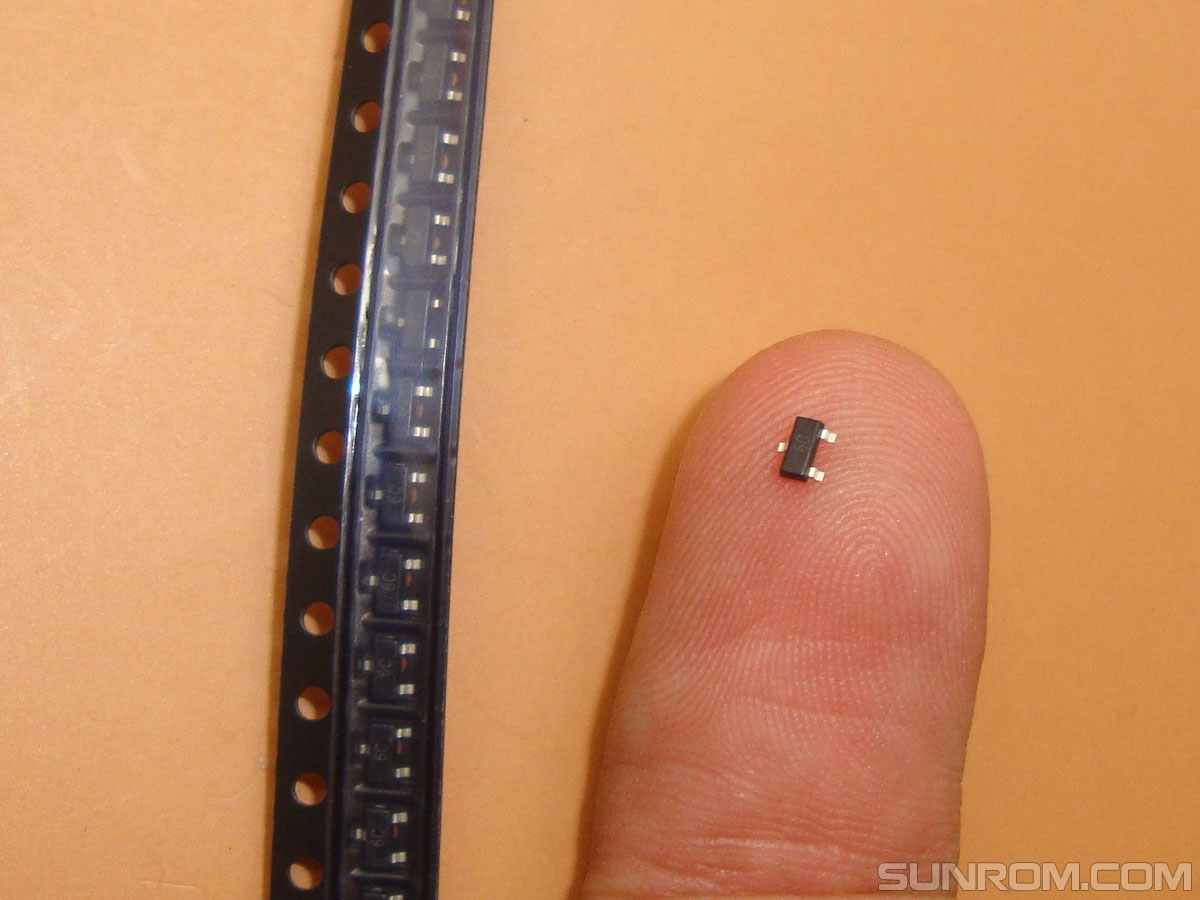

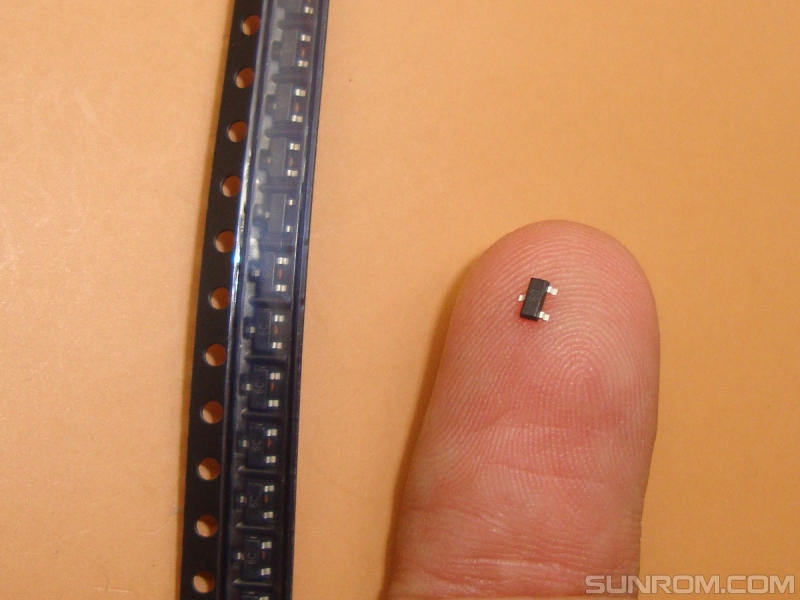

3.3V 200mA Positive Fixed LDO Voltage Regulator in SOT-23 package
Product Code 4252
Available
We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 1610 nos.
Factory Leadtime for more quantity: 15 days.
If you order more than 1610, We will send two packages, right now available stock and remaining in 15 days
Quantity Pricing
Quantity :
Price
1-49 :
Rs.15.00/-
50-99 :
Rs.14.25/-
100-499 :
Rs.13.50/-
500-999 :
Rs.13.20/-
1000+ :
Rs.12.75/-
Downloads
Torex XC6206 Datasheet
XC6206P332MR (662K)
Sunrom Product Code for Ordering:
4252
Application
Low Drop
Package
SOT23

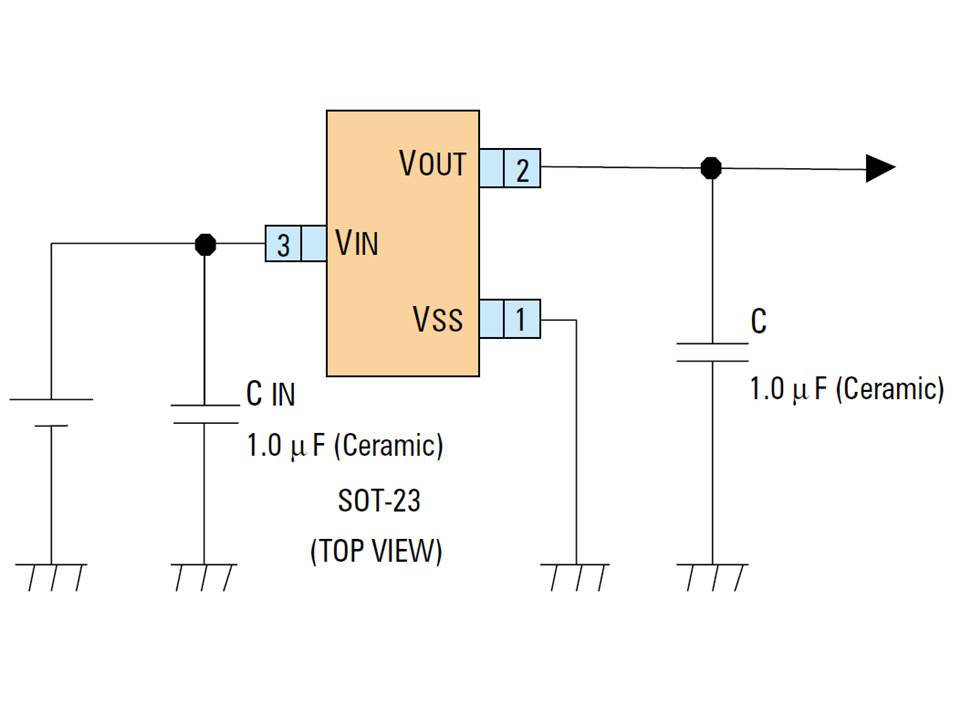

- IC, POS VOLT REG, 0.3A, 3.3V, SOT23-3
- Input Voltage Min: 1.8V
- Input Voltage Max: 6V
- Output Voltage Nom.: 3.3V
- Output Current: 200mA
- Dropout Voltage Vdo: 250mV
- LDO Regulator Case Style: SOT-23
- No. of Pins: 3

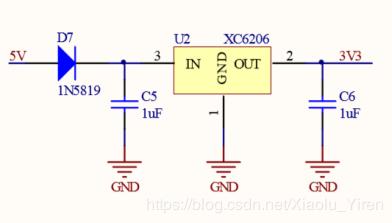

We are using this in our sensor modules where input voltage can be 3.3V or 5V and output will be fixed 3V to sensor IC. So if user inputs 3.3V the output is 3V due to low drop out voltage of this IC. When you input 5V the output is 3.3V. This IC is excellent where you want to design modules compitable with various input voltages.
