SUNROM ELECTRONICS

USBLC6-2SC6 - ESD Protection

ESD and Surge Protection for USB & Ethernet devices

Product Code 4510

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 184 nos. Factory Leadtime for more quantity: 15 days.
If you order more than 184, We will send two packages, right now available stock and remaining in 15 days
Quantity Pricing
Quantity :
Price (Discount%)
1-9 :
Rs.25.96/- (0%)
10-24 :
Rs.24.66/- (5%)
25-49 :
Rs.24.14/- (7%)
50-99 :
Rs.23.62/- (9%)
100-249 :
Rs.23.36/- (10%)
250-499 :
Rs.23.10/- (11%)
500-999 :
Rs.22.59/- (13%)
1000+ :
Rs.22.07/- (15%)
USBLC6-2SC6 - ESD Protection
Sunrom Product Code for Ordering:
4510
Voltage
5 V

The very low line capacitance secures a high level of signal integrity without compromising in protecting sensitive chips against the most stringently characterized ESD strikes.

ESD Suppressors, ESD Protection Low Cap, 2 Ch, 5V, 3.5pF

Complies with the following ESD/Surge standards:

  • IEC 61000-4-2 level 4: – 15 kV (air discharge)
  • 8 kV (contact discharge)

Features

  • 2 data-line protection
  • Protects VBUS
  • Very low capacitance: 3.5 pF max.
  • Very low leakage current: 150 nA max.

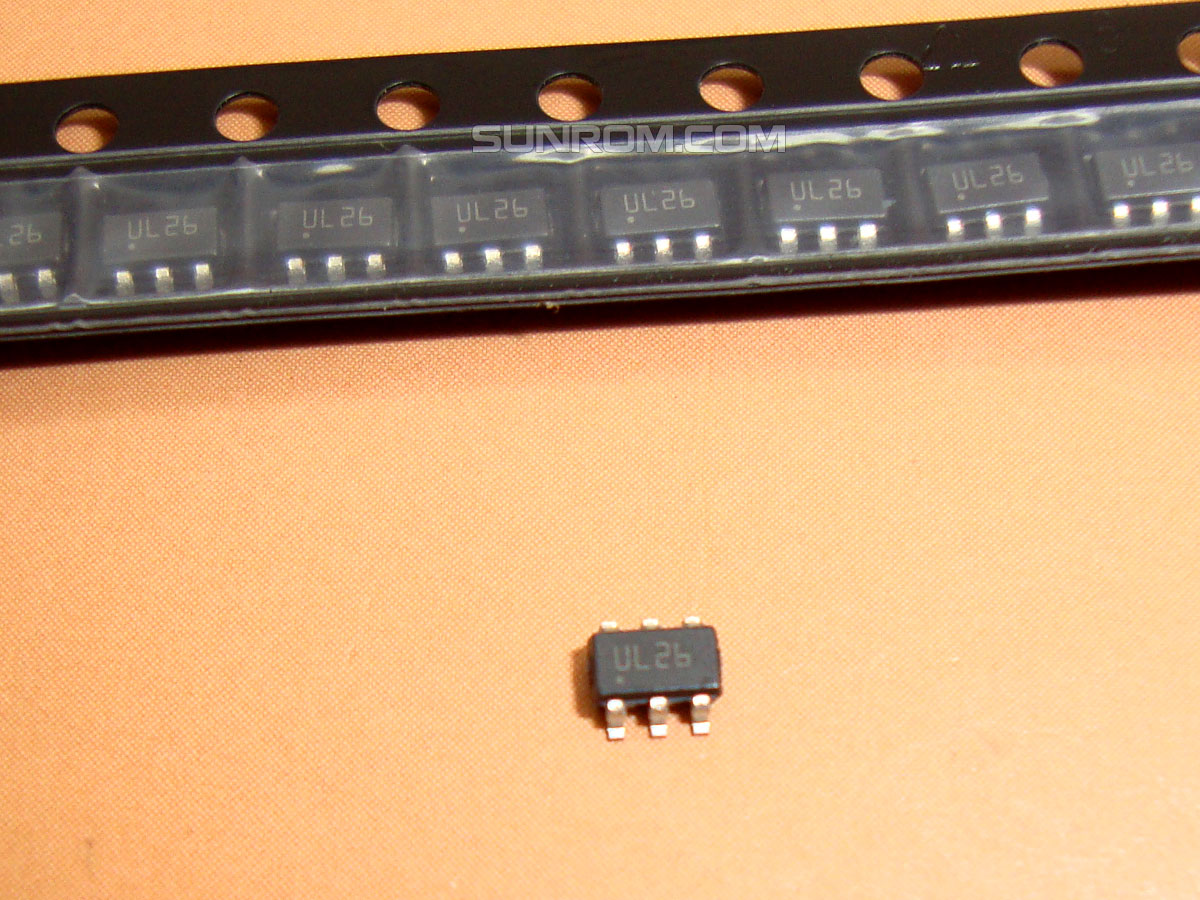

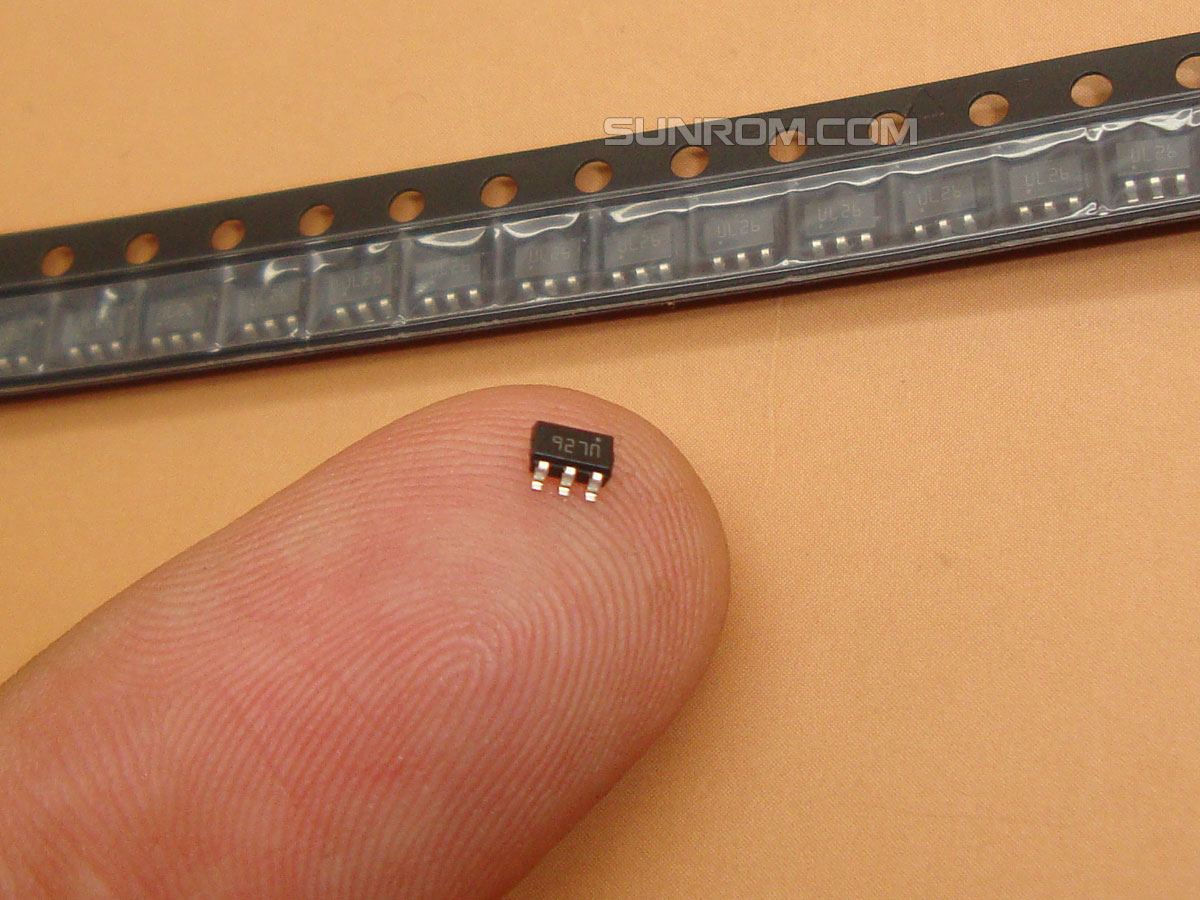

  • SOT23-6L package
  • RoHS compliant

Benefits

  • Very low capacitance between lines to GND for optimized data integrity and speed
  • Low PCB space consumption: 9 mm² max for SOT23-6L
  • Enhanced ESD protection: IEC 61000-4-2 level 4 compliance guaranteed at device level, hence greater immunity at system level
  • ESD protection of VBUS
  • High reliability offered by monolithic integration
  • Low leakage current for longer operation of battery powered devices
  • Fast response time
  • Consistent D+ / D- signal balance: – Very low capacitance matching tolerance I/O to GND = 0.015 pF – Compliant with USB 2.0 requirements

Applications

  • USB 2.0 ports up to 480 Mb/s (high speed)
  • Compatible with USB 1.1 low and full speed
  • Ethernet port: 10/100 Mb/s
  • SIM card protection
  • Video line protection
  • Portable electronics

Widely used in many commercial products.
