EMI Ferrite Chip Bead - 500mA - 0805 - TDK MMZ2012S601AT

They offer excellent anti-EMI properties and low DC resistance. Placed very close next to the interference source even with small size 0805. Perfect as data line filter and for uncoupling of distribution voltage.

Product Code 3724

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.3.75/- (0%)
50-99 :
Rs.3.56/- (5%)
100-499 :
Rs.3.38/- (10%)
500-999 :
Rs.3.30/- (12%)
1000+ :
Rs.3.19/- (15%)

Downloads

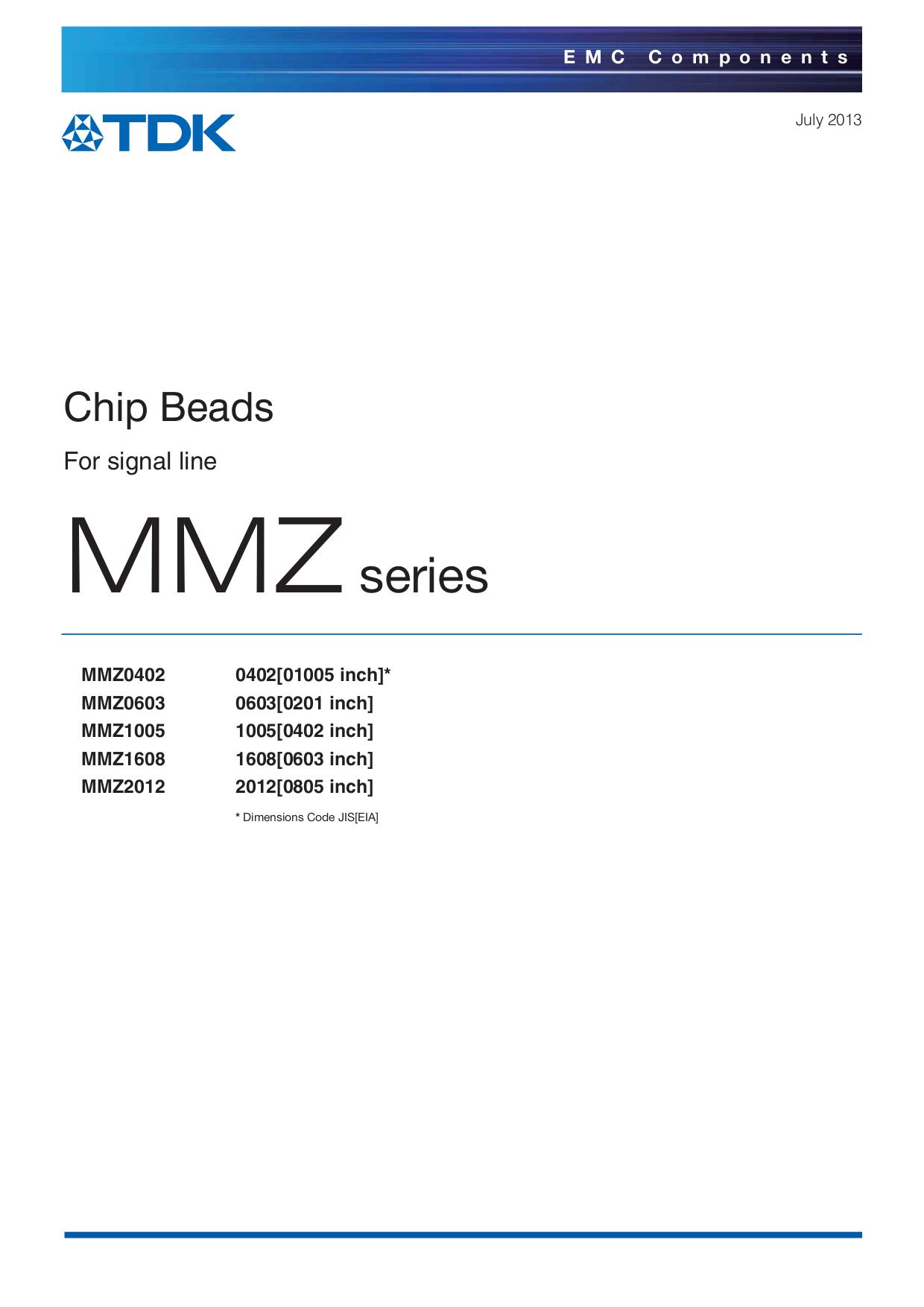

Datasheet
EMI Ferrite Chip Bead - 500mA - 0805 - TDK MMZ2012S601AT
Sunrom Product Code for Ordering:
3724

The special SMD chip bead ferrites can be put directly on the printed circuit board. They offer excellent anti-EMI properties and low DC resistance. Placed very close next to the interference source even with small size 0805. Perfect as data line filter and for uncoupling of distribution voltage.

Ferrite Case Style:  0805 [2012 Metric]
Impedance @ 100MHz:  600ohm
DC Current Rating:   500mA
Product Range:  MMZ Series
DC Resistance Max:    0.3ohm
Impedance Tolerance:     ± 25%

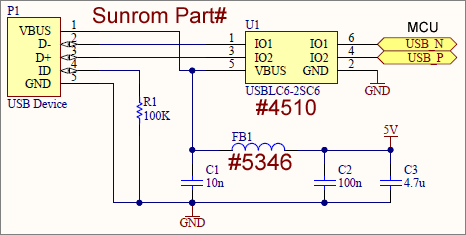

Typical Use

Filter VBUS of USB 5V power supply.
