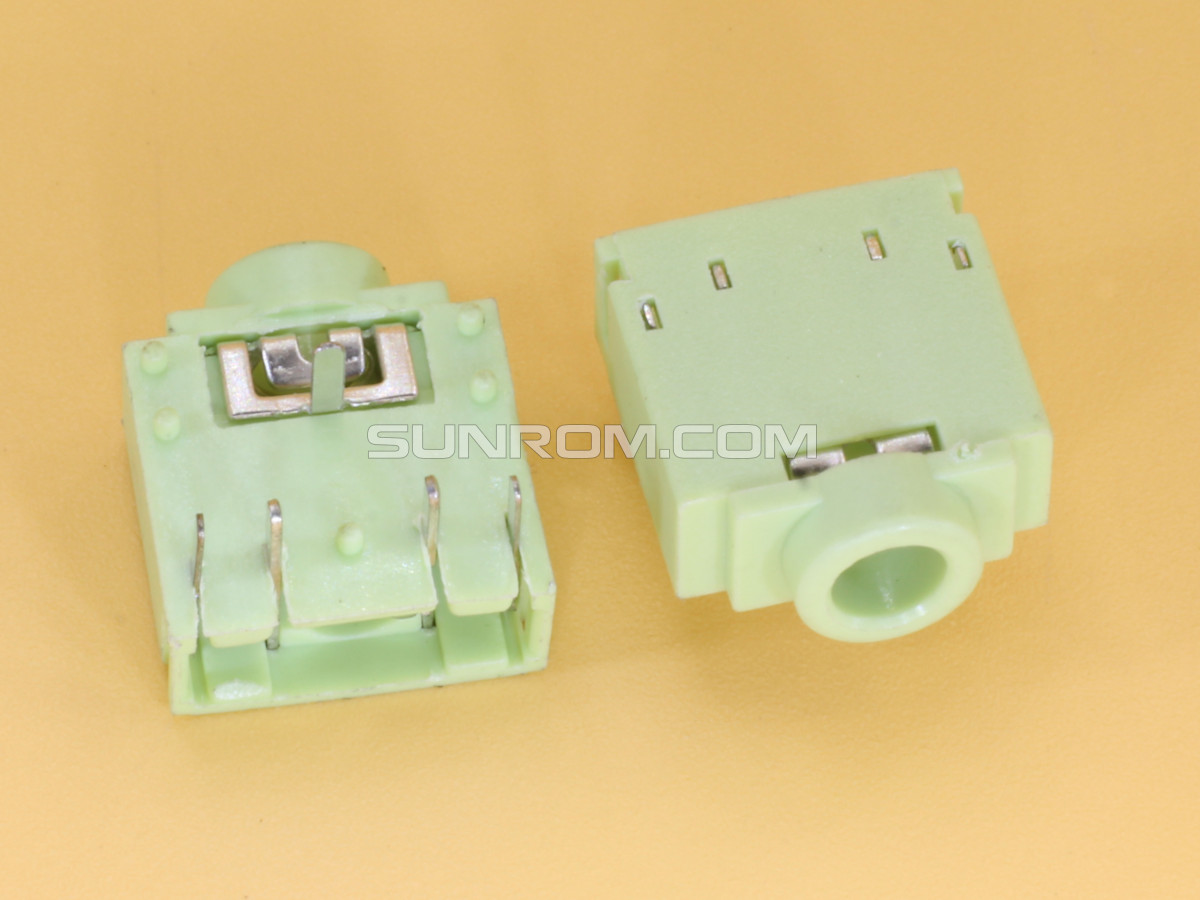

Stereo Socket - PCB Mount - 3.5mm Green
3.5mm stereo audio socket, Low profile, Speaker by pass pins.
Product Code 7462
Available
We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 500 nos.
Factory Leadtime for more quantity: 15 days.
If you order more than 500, We will send two packages, right now available stock and remaining in 15 days
Quantity Pricing
Quantity :
Price
1-49 :
Rs.11.25/-
50-99 :
Rs.10.69/-
100-499 :
Rs.10.13/-
500-999 :
Rs.9.90/-
1000+ :
Rs.9.56/-
Downloads
Stereo Socket Datasheet
Stereo Socket - PCB Mount - 3.5mm Green
Sunrom Product Code for Ordering:
7462
Mounting
Through Hole
A 3.5mm stereo jack socket for PCB mounting. Good for adding stereo audio output to MP3 player projects.
You must be wondering why there are 5 pins in the socket. When plug is not inserted, the pins 2-3 and 4-5 are connected. When plug is inserted they are disconnected. Typically used in stopping signal to go to other parts where muting is required and instead signal are routed to plug instead. You must have seen in some units that when headphone plug is inserted the amplifier speaker is muted.
