Ready to use SMPS Transformer to make 5V to 12V SMPS using TNY278 chip.
EE16-A2 switching power supply high frequency transformer, matched with TNY268PN or TNY278 series switching power supply chip, can output power up to 10W,
EE16-A2 is EE16 3+2 pins. EE16-A2 has a fifth pin, which can prevent reverse insertion.

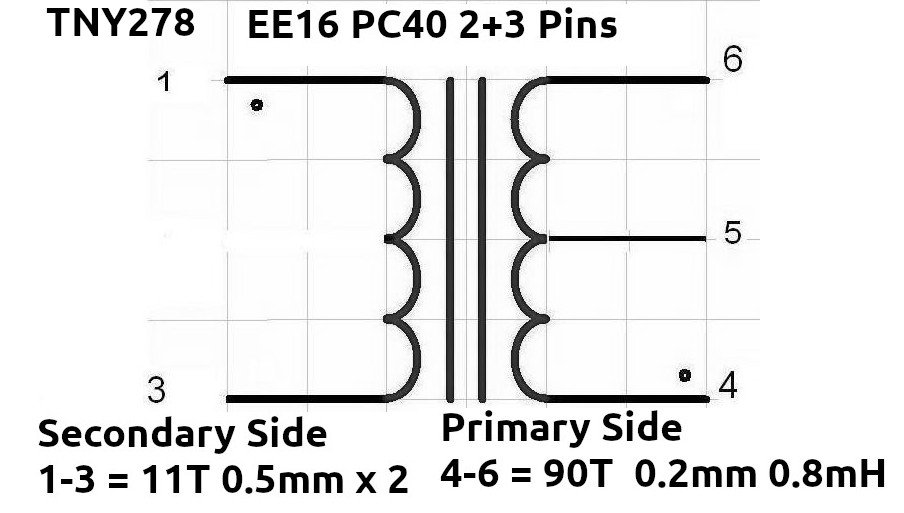

Primary inductance 0.8mH, turns ratio 90:11, three layers of tape insulation between primary and secondary
Length x width x height: 16.3mm x 12.5mm x 16mm
