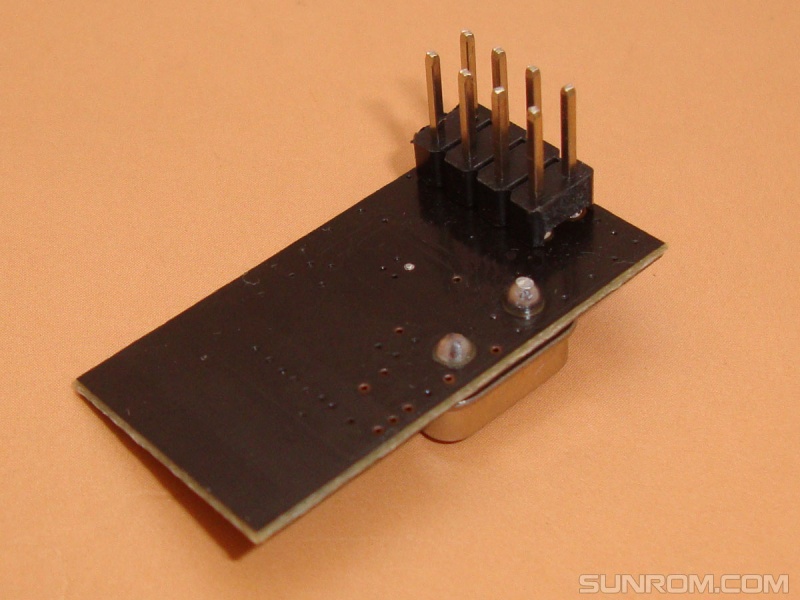

RF Module, 2.4Ghz, nRF24L01+
SPI interface RF transceiver
RF Module, 2.4Ghz, nRF24L01+
Sunrom Product Code for Ordering:
3960
This module based on Nordic nRF24L01+, highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band. Nordic nRF24L01+ integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.
Features
- Worldwide license-free 2.4GHz ISM band operation
- 250kbps, 1Mbps and 2Mbps on-air data-rate options
- Enhanced ShockBurst™ hardware protocol accelerator
- Ultra low power consumption – months to years of battery lifetime
Specifications
- Power supply : 1.9~3.6V
- IO port working voltage : 0~3.3v / 5v
- Transmitting rate : +7dB
- Receiving sensitivity : ≤ -90dB
- Transmission range : 50-60 meters indoor and around 100 meters in open area
- Dimension : 15x29mm

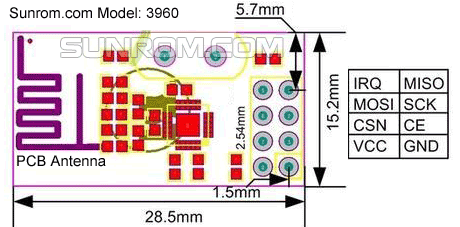

Pinout, Dimensions and Schematic
Related Links
- Nordic Page for nRF24L01+ Datasheet & Application Notes
- Adruino Playground - nRF24L01
- Great Nordic tutorials (Check links on right side)
- mbed Example
- Example PIC Code
