ESP32-C3 SuperMini WiFi+Bluetooth Development Board - Black Board - Red PCB Ant
ESP32 is a series of low-cost, low-power system on a chip microcontrollers with integrated Wi-Fi and dual-mode Bluetooth.
Downloads
8110 Datasheet
ESP32-C3 SuperMini WiFi+Bluetooth Development Board - Black Board - Red PCB Ant
Sunrom Product Code for Ordering:
8110

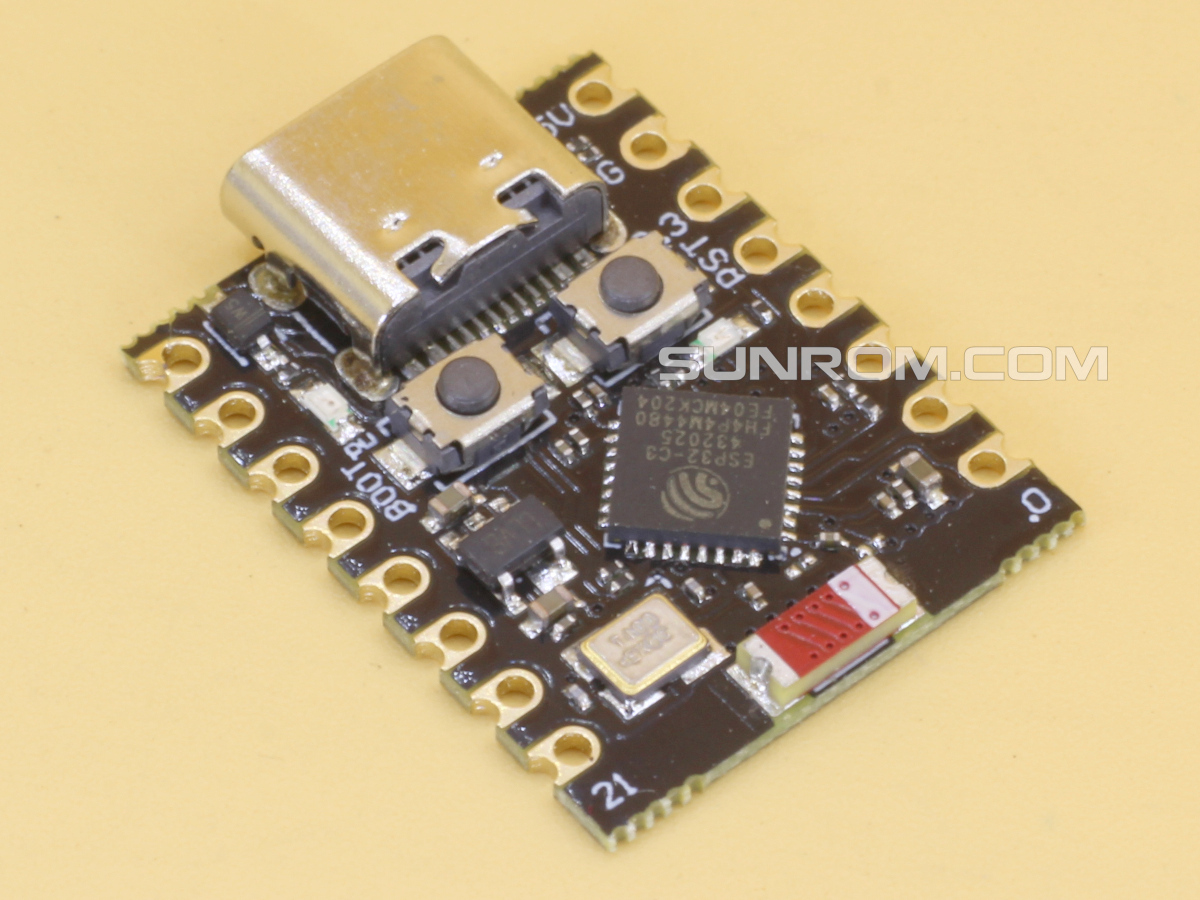

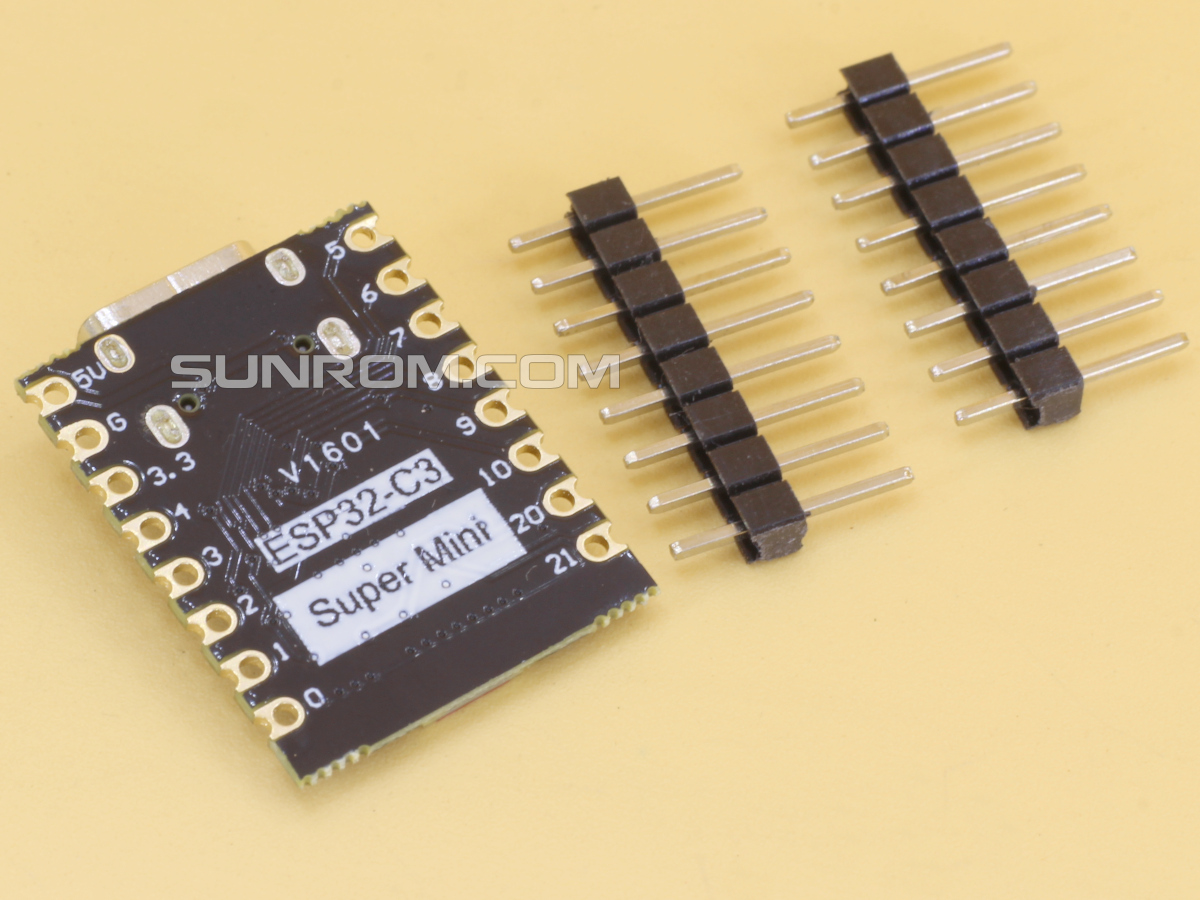

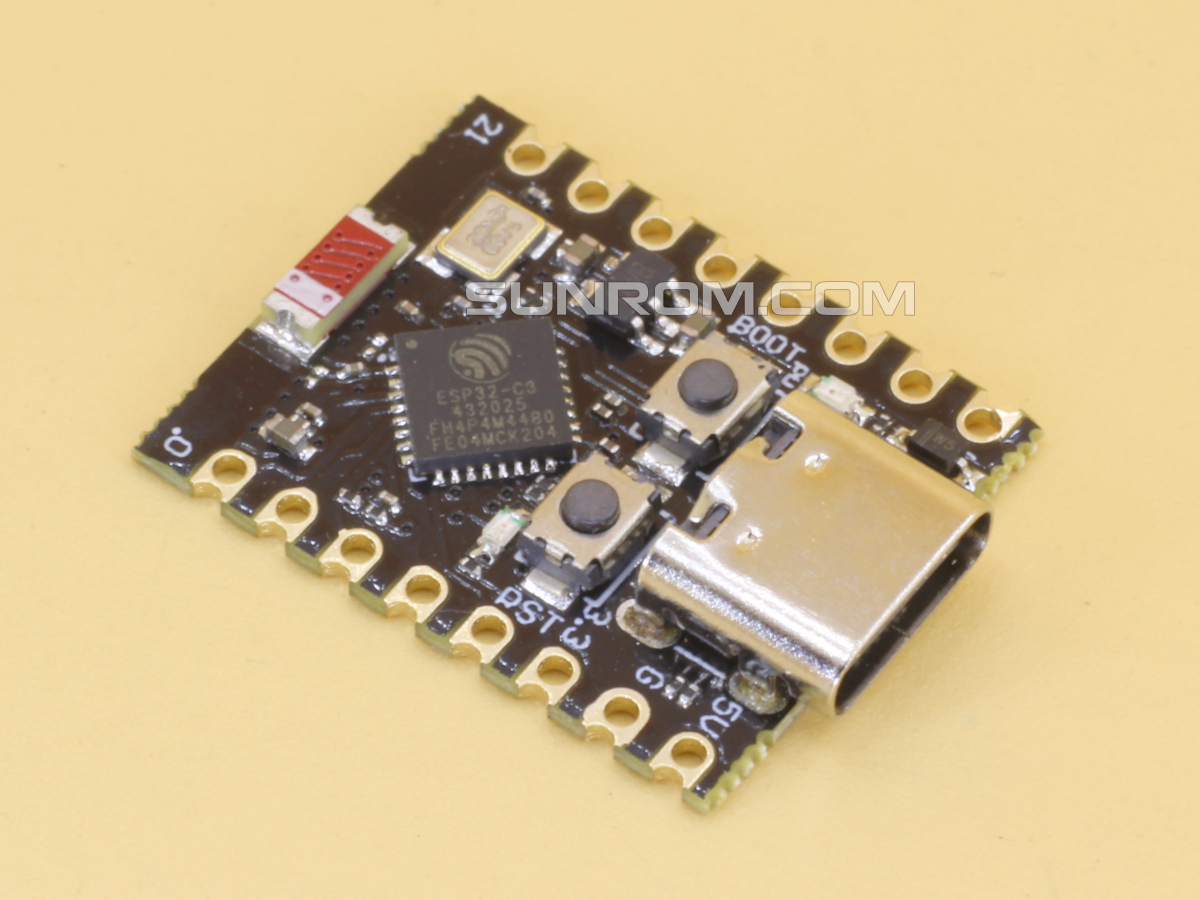

The ESP32-C3 SuperMini is an ultra-compact, cost-effective development board featuring a 160MHz RISC-V 32-bit single-core processor, built-in 2.4 GHz Wi-Fi, and Bluetooth 5.0 (LE). It is ideal for small IoT, wearable, and smart home projects, featuring 11 GPIOs (supporting PWM, ADC, I2C, UART), a Type-C USB port, and low power consumption (~43µA in deep sleep).
Key Features and Specifications
- Processor: ESP32-C3FN4 RISC-V single-core CPU up to 160 MHz.
- Memory: 4 MB embedded flash and 400 KB SRAM.
- Wireless: 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 LE.
- I/O: 11 digital I/O pins (all supporting PWM), 4 analog inputs (ADC).
- Interfaces: 1x I2C, 1x SPI, 2x UART.
- Power: USB Type-C (5V) and 3.3V–6V external input.
- Dimensions: Extremely compact "thumb-sized" footprint.
- Compatibility: Supports Arduino IDE, ESP-IDF, and MicroPython.
Components and Functionality
- Buttons: Dedicated Reset and Boot buttons for flashing.
- LED: Integrated user-controllable LED.
- Expansion: Optional expansion boards are available to provide battery charging capabilities and better GPIO access.
- Security: Features hardware accelerators for AES-128/256, Hash, RSA, and digital signatures.
- The board is particularly noted for its ability to fit into tiny, space-constrained, battery-powered designs.
