DC-DC Step Down XL7015 0.8A

In = 5V-80V / Out = 5V-20V(Adjustable) @ 0.8A Switching Regulator

Product Code 6168

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 18 nos.
Factory Leadtime for more quantity: 15 days
Quantity Pricing
Quantity :
Price (Discount%)
1-9 :
Rs.236.00/- (0%)
10-24 :
Rs.224.20/- (5%)
25-49 :
Rs.219.48/- (7%)
50-99 :
Rs.214.76/- (9%)
100-249 :
Rs.212.40/- (10%)
250-499 :
Rs.210.04/- (11%)
500-999 :
Rs.205.32/- (13%)
1000+ :
Rs.200.60/- (15%)

Downloads

XL7015 Datasheet

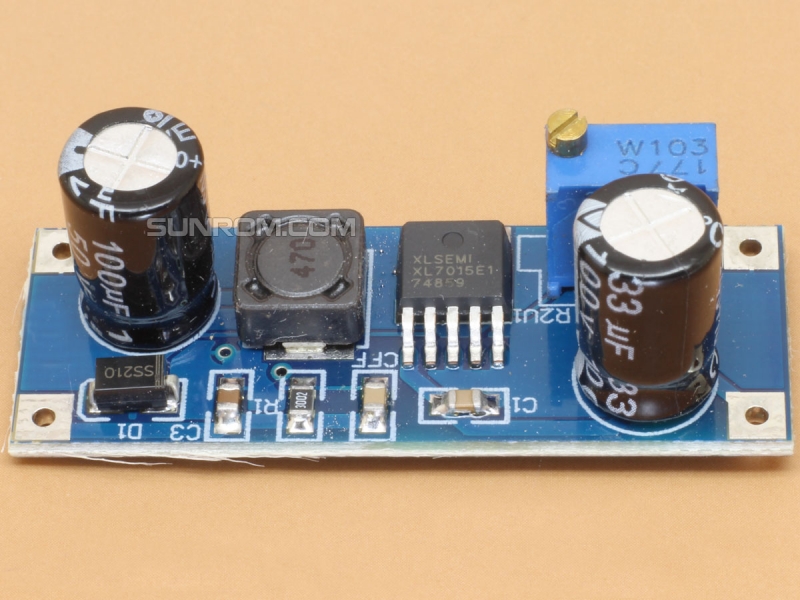

DC-DC Step Down XL7015 0.8A
Sunrom Product Code for Ordering:
6168

Description:

XL7015 DC - DC buck type module is A highly efficient, high pressure step-down DC - DC converter, provides the highest 0.8 A output current capability, low ripple, excellent linear regulation and load regulation, up to A maximum of 80 v input voltage, more than 2596 modules, etc. Chip built-in various protection mechanisms. Can be applied to electric vehicle controller, etc.

Specifications:

1. 5 v to 80 v input voltage range wide
2. The output voltage from 5 v to 20 v adjustable
3. The minimum pressure drop 1 v
4. 0.8 A biggest switch current
5. Recommend the output power is less than 7 w
6. Shut off built-in overheating protection, output short circuit protection, over current protection
7. Good linear with load regulation

The board size: 16 mm * 44 mm

Wiring instructions:

1. VIN: input voltage (5v - 80v)
2. The GND: input voltage side
3. The VOUT: output voltage (5v - 20v)
4. The GND: output voltage to end


Module Schematic
