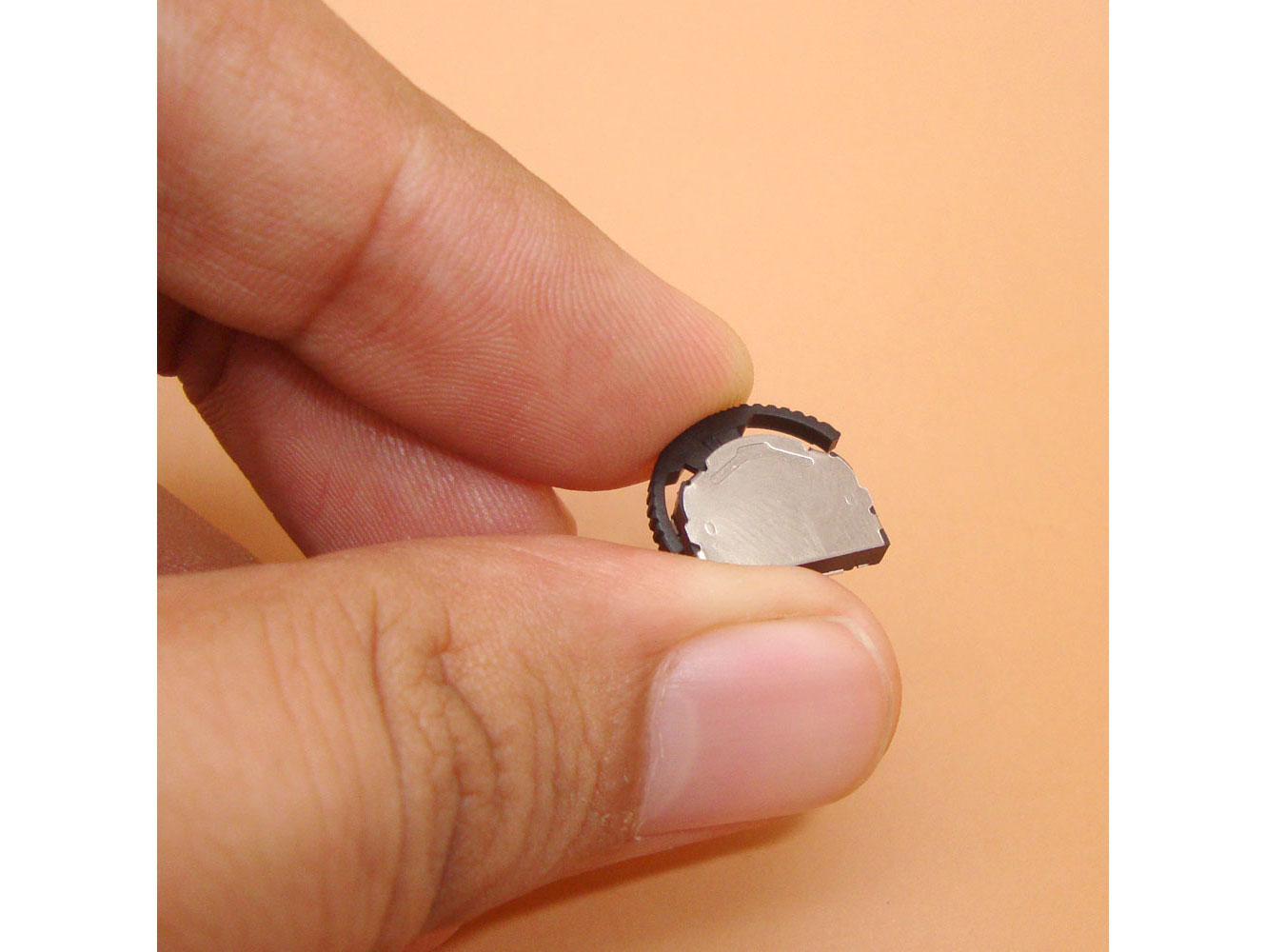

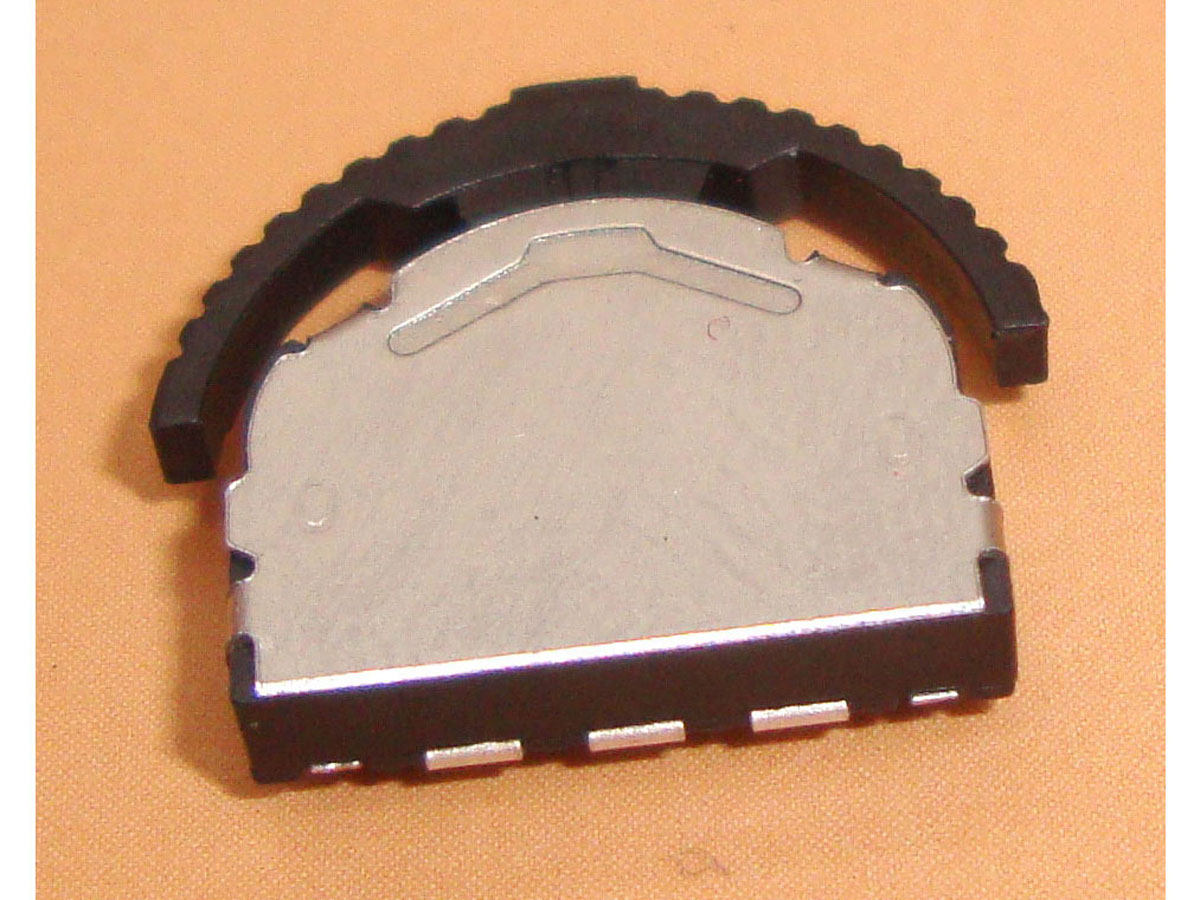

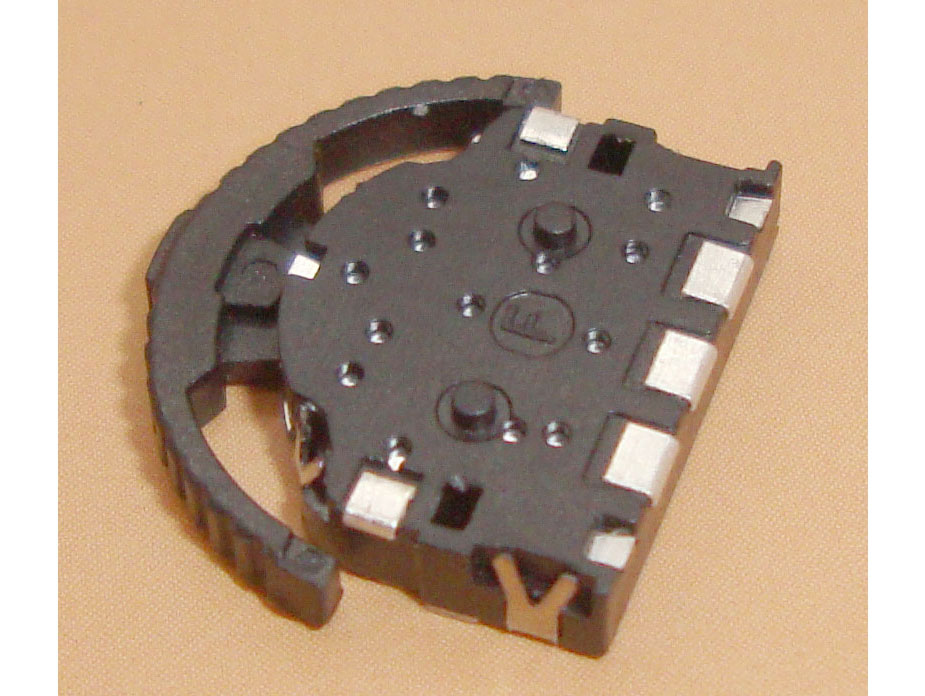

3 way navigation switch

Spring return, center push, Single knob can move CW/CCW/PUSH

Product Code 4389

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 101 nos.
Factory Leadtime for more quantity: 15 days
Quantity Pricing
Quantity :
Price (Discount%)
1-9 :
Rs.65.00/- (0%)
10-24 :
Rs.61.75/- (5%)
25-49 :
Rs.60.45/- (7%)
50-99 :
Rs.59.15/- (9%)
100-249 :
Rs.58.50/- (10%)
250-499 :
Rs.57.85/- (11%)
500-999 :
Rs.56.55/- (13%)
1000+ :
Rs.55.25/- (15%)
3 way navigation switch
Sunrom Product Code for Ordering:
4389

Good for use in portable audio player and user navigation applications.

Specification

Rating    10mA.5V DC
Contact resitance    100MΩ max.
Operating temperature range    -30°C to +85°C
Lifetime    100,000 Cycles min
Operating force    Lever portion 120±30gf   /  Push portion205±50gf
Travel    3-direction-25°-0°~+25° / push portion 0.90±0.1mm



Example use of this switch on DIY MP3 Projects for PLAY/STOP/NEXT/PREV
