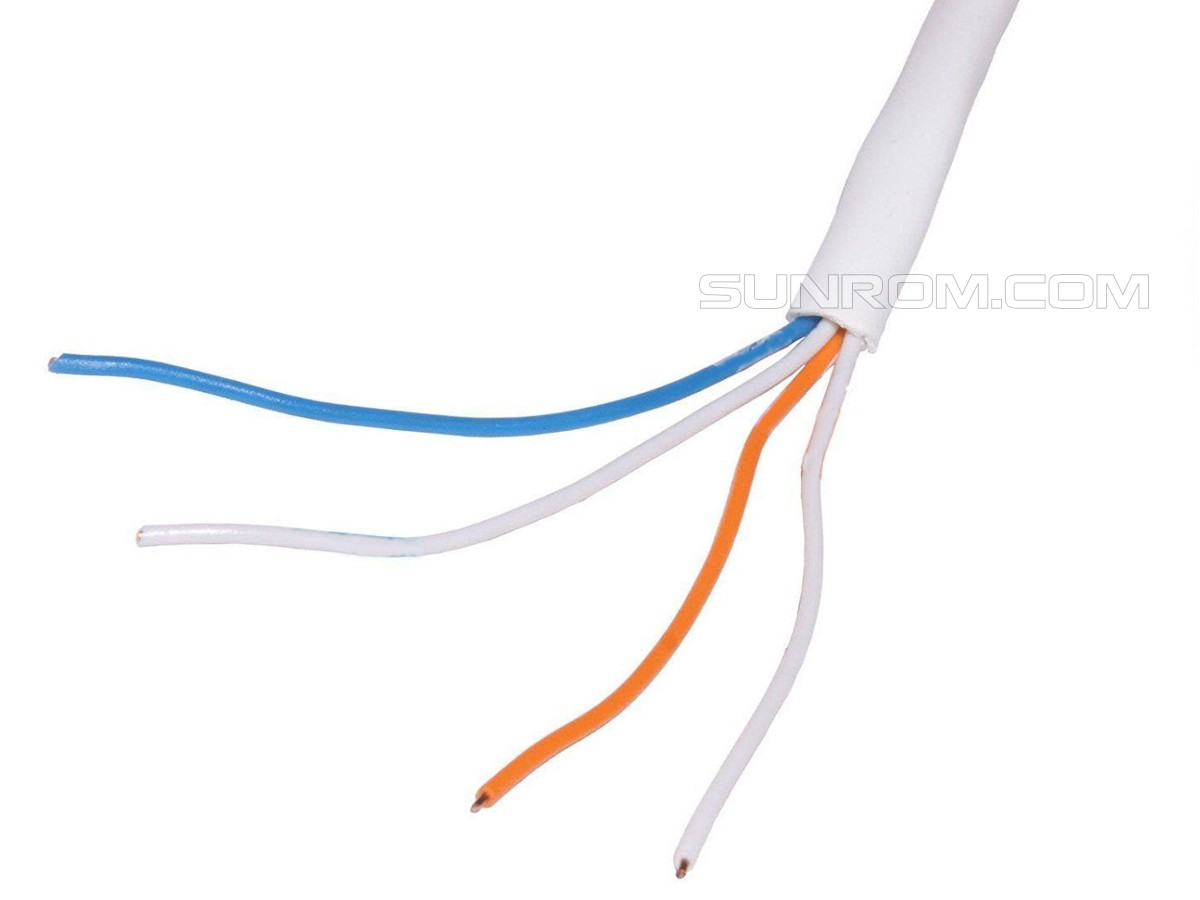

2 Pair - 4 Wire x 0.4mm Gray Solid Copper Unshielded FR Cable per Meter

PVC Insulated Copper Wires

Sunrom Product Code for Ordering:

8090

Wire Size

0.4 Sq. mm

Core Count

Color

Gray

Uncut per meter provided as per quantity in order upto 90 meters max.

Product details

Brand: RR Kabel
Product line: Ratnacom
Cable type: Telephone/Telecom
Conductor size: 0.4mm
Number of pairs: 2
Approx. Overall Diameter (mm) 3.9mm
Core material: Solid electrolytic grade copper
DC conductor resistance 143.0 Ω/Km at 20°C max.
Mutual capacitance 50 nF/km max.
Insulation resistance in air 10000 M-Ω/Km
Capacitance unbalance – pair to pair 250 pF/100m max.
Capacitance unbalance – pair to ground 330 pF/100m max.
Resistance unbalance 5% max.
Insulation: polyethylene (PE) and flame-retardant (FR) PVC jacket
Construction: Unarmored, with twisted pairs to minimize crosstalk
Applications: Suitable for telephone, fax, modem, and other communication devices
Good for low power, signal communications like RS232, UART, Sensors.

Low Attenuation and Minimised Cross Talk | Flame Retardant Jacket.

Recommended for switchboard and telephone wiring in residentials and commercial infrastructure, for transmission of analog and digital signals, wiring in faxes, modems, alarm enunciators, data recording/acquisition systems and various communication devices.

Technical Data

Specifications: ITD-S/WS 113C
Conductor: The central conductor is made of solid electrolytic grade of copper
Insulation: : Premium quality grade polyethylene used on a special extruder. This offers for low attenuation.
Twisted Pairs : The cores are carefully twisted with optimal lays and bunched together to deliver minimised cross talk.
Jacket: Specially formulated flame retardant (FR) PVC
Marking: The cables are marked ‘RATNACOM FR’

Choosing the correct size cable

It is important to choose the correct size cable when connecting to the mains. The wire has to be the correct size so that it can cope with the power demands of the device. The size stated for cables is given in mm2 and this measurement is actually the cross sectional area of the wire inside. The larger that area the higher the current it can carry.

If a cable is used which is too small for the amount of current passing through, it becomes dangerous. This results in the wire overheating and causing a serious safety risk. The table below gives typical values of cable size available plus corresponding current rating and maximum power ratings.
