PCB Layout Design Service
We provide professional grade custom printed circuit board design and layout for a variety of electronic systems.
Process
- Send us your circuit design(Image or PDF format)
- We provide the most competive quote

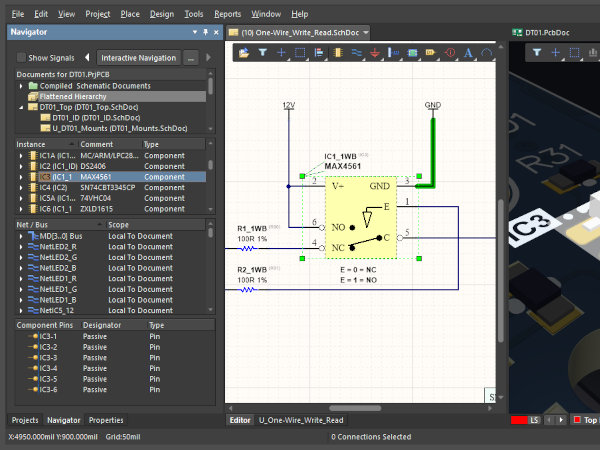

- Once you confirm order, We start design process and send you Schematic for verification

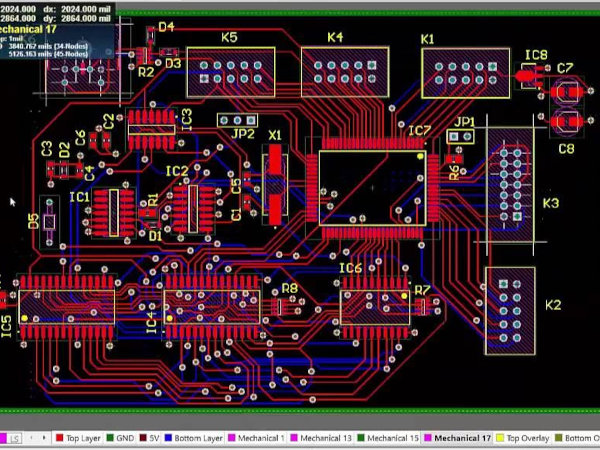

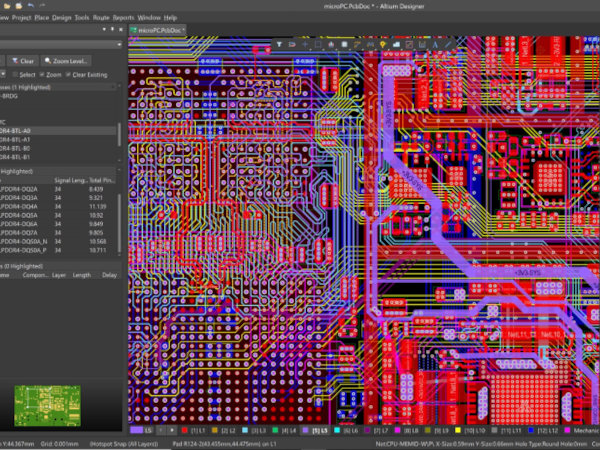

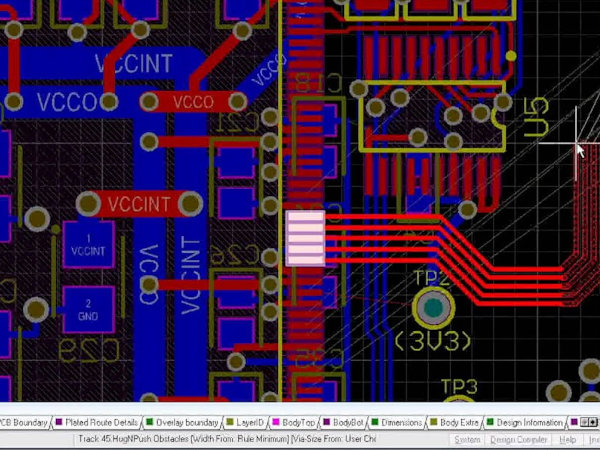

- PCB Layout is carefully designed with DFM rules(Design for Manufacturing) rules
- We deliver Gerber for PCB manufacturing, Bill of Material(Excel File) and Schematic and PCB output composite file(color PDF)
Technical support
Upon completion of the project, we create a full document package that comprises BOM and Gerber files. In addition, we set a warranty period for our PCB design services. During this period, we fix bugs and provide other technical support covered by the 30 days warranty. After the warranty period ends, we stay in touch with our customers and can consult them when needed. In future if you need any changes, we can carry out easily.
