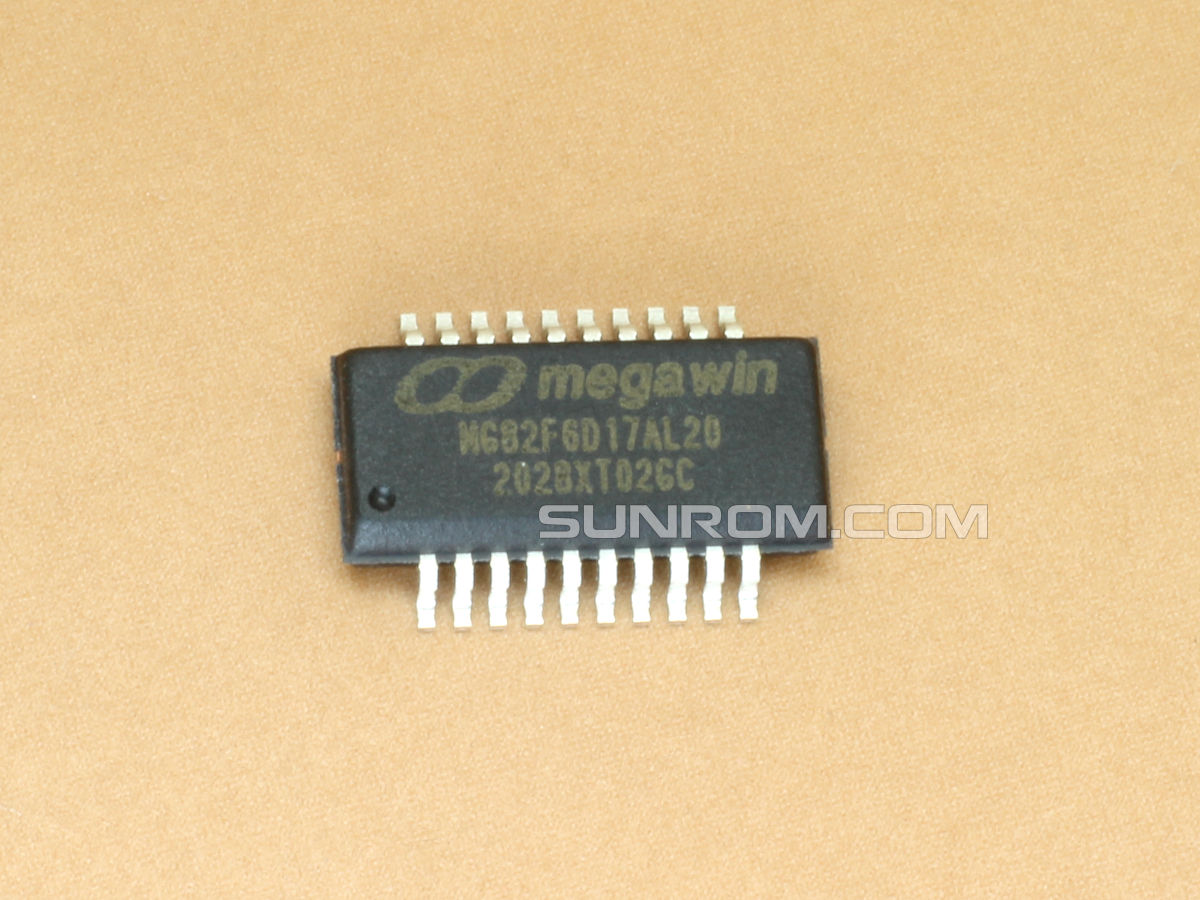

MG82F6D17 Megawin MG82F6D17AL20 SSOP20

1-T 80C51 Central Processing Unit
        * MG82F6D17 with 16K Bytes flash ROM
            *ISP memory zone could be optioned as 0.5KB/1.0KB~7.5KB
            *Flexible IAP size by software configured
            *Code protection for flash memory access
            *Flash write/erase cycle: 20,000 times
            *Flash data retention: 100 years at 25℃
            *Default MG82F6D17 Flash space mapping
            AP     13.5KB 0000h~35FFh
            IAP     1.0KB 3600h~39FFh
            ISP     1.5KB 3A00h~3FFFh
        * Data RAM : 1K Bytes
            *On-chip 256 bytes scratch-pad RAM
            *768 bytes expanded RAM (XRAM)
            *Support page select on XRAM access
        * Dual data pointer
        * Provide one channel DMA engine
            *P2P, M2P, P2M
            *Memory target: XRAM
            *Peripheral target: UART0, UART1, SPI, TWI0/I2C0, ADC12 & CRC16
            *Timer 5 and Timer 6 are used for DMA, but it also can be traded as independent timer when DMA not in use
        * Interrupt controller
            *16 sources, four-level-priority interrupt capability
            *Three external interrupt inputs, nINT0, nINT1 and nINT2, with glitch filter
            *All external interrupts support High/Low level or Rising/Falling edge trigger
        * Total 9/10 timers in MG82F6D17
            *RTC Timer and WDT Timer
            *Timer 0, Timer 1, Timer 2 and Timer 3
            *PCA0, Program Counter Array 0
            *S0 BRG and S1 BRG
            *If Timer 2/3 in split mode, then total 10 timers
        * Four 16-bit timer/counters, Timer 0, Timer 1, Timer 2 and Timer 3
            *X12 mode and timer clock output function
            *Synchronous Run-Enable on all timer (same function on Stop and Reload)
            *New 5 operating modes in Timer 2/3 with 8 clock sources and 8 capture sources
            *Timer 2/3 can be split to two 8-bit timers
            *Clock Count Output (CCO) on T2CKO and T3CKO
            *All timers support PWM mode
        * One Programmable 16-bit counter/timer Arrays (PCA0) with 8 Compare/PWM modules
            *PCA0 has 6 CCP (Capture/Compare/PWM) modules and 2 CP (Compare/PWM) modules
            *Reloadable 16-bit base counter to support variable length PWM
            *Up to 100MHz clock source from on-chip CKM
            *Capture mode, 16-bit software timer mode and High speed output mode
            *Buffered capture mode to monitor narrow pulse input
            *Variable 8/10/12/16-bit PWM mode, the PCA can be configured to:
            Up to 8 channels un-buffered 10/12/16-bit PWM, or
            Up to 8 channels buffered 2~8-bit PWM, or
            Up to 4 channels buffered 9~16-bit PWM
            *PCA0 PWM module 0~5 with dead-time control, break control and central-aligned option
        * 8 Inputs Keypad Interrupt
        * 12-Bit Single-ended ADC
            *Programmable throughput up to 800K sps
            *8 channel external inputs and one channel internal input (IVR/1.4V)
            *Support window detect function on ADC result
            *Support channel scan mode
        * Enhanced UART (S0)
            *Framing Error Detection
            *Automatic Address Recognition
            *Speed improvement mechanism (X2/X4 mode), Max. UART baud rate up to 6MHz
            *Support SPI Master in Mode 4, up to 12MHz on SPICLK
            *Built-in baud rate generator (S0BRG) to support TX or RX on different baud rate
            *Support LIN bus protocol with auto baud rate detection in mode 5
            *S0BRG in timer mode cascaded with Timer 0/1 to be a 16/24-bit timer/counter
        * Secondary UART (S1)
            *Dedicated Baud Rate Generator (S1BRG) shares to S0 or set as an 8-bit timer
            *Max. UART baud rate up to 1.8432/3.0MHz
            *Support SPI Master in Mode 4, up to 12MHz on SPICLK
            *S1BRG in timer mode cascaded with Timer 0/1 to be a 16/24-bit timer/counter
        * One Master/Slave SPI serial interface
            *Max. 24MHz(Vdd > 3.3V), 16MHz(Vdd = 1.8V) SPICLK on SPI master
            *Max. 16MHz(Vdd > 3.3V), 14MHz(Vdd = 1.8V) on SPI slave
            *8 bits data transfer
            *Up to 3 SPI masters including S0/S1 in mode 4
            *Support daisy-chain function in SPI slave mode
        * Two Master/Slave two wire serial interfaces: TWI0/I2C0 and STWI (SI2C)
            *One Master/Slave hardware engine: TWI0/I2C0
            *Max. 1MHz on TWI0/ I2C0 master mode and Max. 400KHz on TWI0 slave mode
            *One software TWI/ I2C, STWI/ SI2C, Start/Stop serial interface detection (SID)
        * Programmable Watchdog Timer (WDT), clock sourced from ILRCO or SYSCLK
            *One time enabled by CPU or power-on
            *Interrupt CPU or Reset CPU on WDT overflow
            *Support WDT function in power down mode (watch mode) for auto-wakeup function
        * Real-Time-Clock (RTC) module, clock sourced from ILRCO, WDTPS, WDTOF, SYSCLK or SYSCLK/12
            *Programmable interrupt period from mini-second wakeup to minute wakeup
            *21-bit length system timer
        * Beeper function
        * General purpose logic (GPL/CRC)
            *Bit order reversed function
            *16-bit CRC engine (CCITT-16 polynomial)
            *Support automatic CRC of flash content
            *Programmable initial seed function of CRC
        * On-Chip-Debug interface (OCD)
            *MG82F6D17AS8 SOP8 not support OCD
        * Maximum 17 GPIOs in 20-pin package
            *P3 can be configured to quasi-bidirectional, push-pull output, open-drain output and input only
            *P0, P1, P2, P4 and P6 can be configured to open-drain output or push-pull output
            *P4.7 shared with RST
            *Programmable GPIO driving strength and driving speed
            *On chip pull-up enable on each pin
        * Clock Sources
            *Internal 12MHz/11.059MHz oscillator (IHRCO): factory calibrated to ±1%, typical
            *Internal Low power 32KHz RC Oscillator (ILRCO)
            *External clock input (ECKI) on P6.0, up to 25MHz
            *Internal RC Oscillator output on P6.0
            *On-chip Clock Multiplier (CKM) to provide high speed clock source (96MHz)
        * Two Brown-Out Detectors
            *BOD0: detect 1.7V
            *BOD1: selected detection level on 4.2V/3.7V/2.4V/2.0V
            *Interrupt CPU or reset CPU
            *Wake up CPU in Power-Down mode (BOD1)
        * Multiple power control modes: idle mode, power-down mode, slow mode, sub-clock mode, RTC mode, watch mode and monitor mode.
            *All interrupts can wake up IDLE mode
            *12(13) sources with 16 pins to wake up Power-Down mode
            *Slow mode and sub-clock mode support low speed MCU operation
            *RTC mode supports RTC to resume CPU in power down
            *Watch mode supports WDT to resume CPU in power down
            *Monitor mode supports BOD1 to resume CPU in power down
        * Operating voltage range: 1.8V – 5.5V
            *Minimum 1.8V requirement in flash write operation (ISP/IAP/ICP)
        * Operating frequency range: 32MHz(max)
            *External crystal mode, 0 – 12MHz @ 2.0V – 5.5V, 0 – 25MHz @ 2.4V – 5.5V
            *CPU up to 12MHz @ 1.8V – 5.5V and up to 25MHz @ 2.2V – 5.5V
            *CPU up to 32MHz @ 2.7V – 5.5V with on-chip CKM
        * Operating Temperature:
            *Industrial (-40℃ to +105℃)*
        * Package Types:
            *SSOP20(150 mil): MG82F6D17AL20 (16K)
