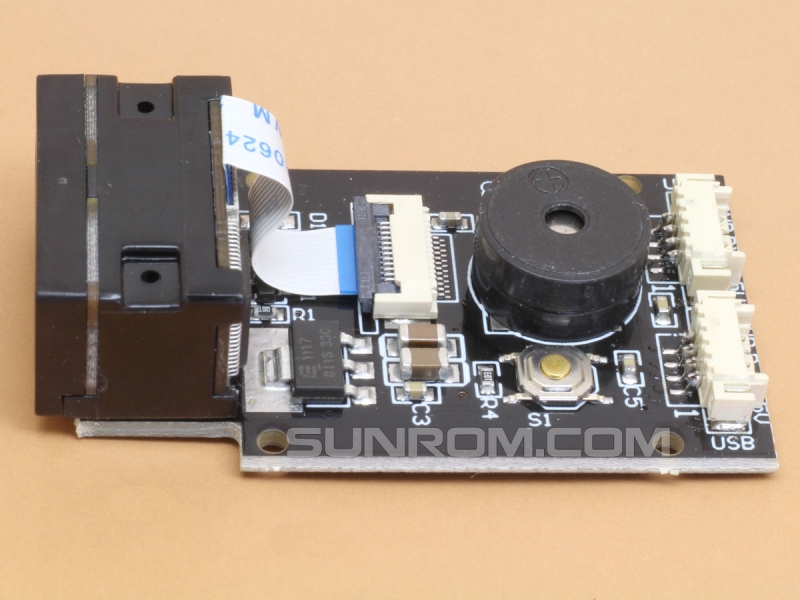

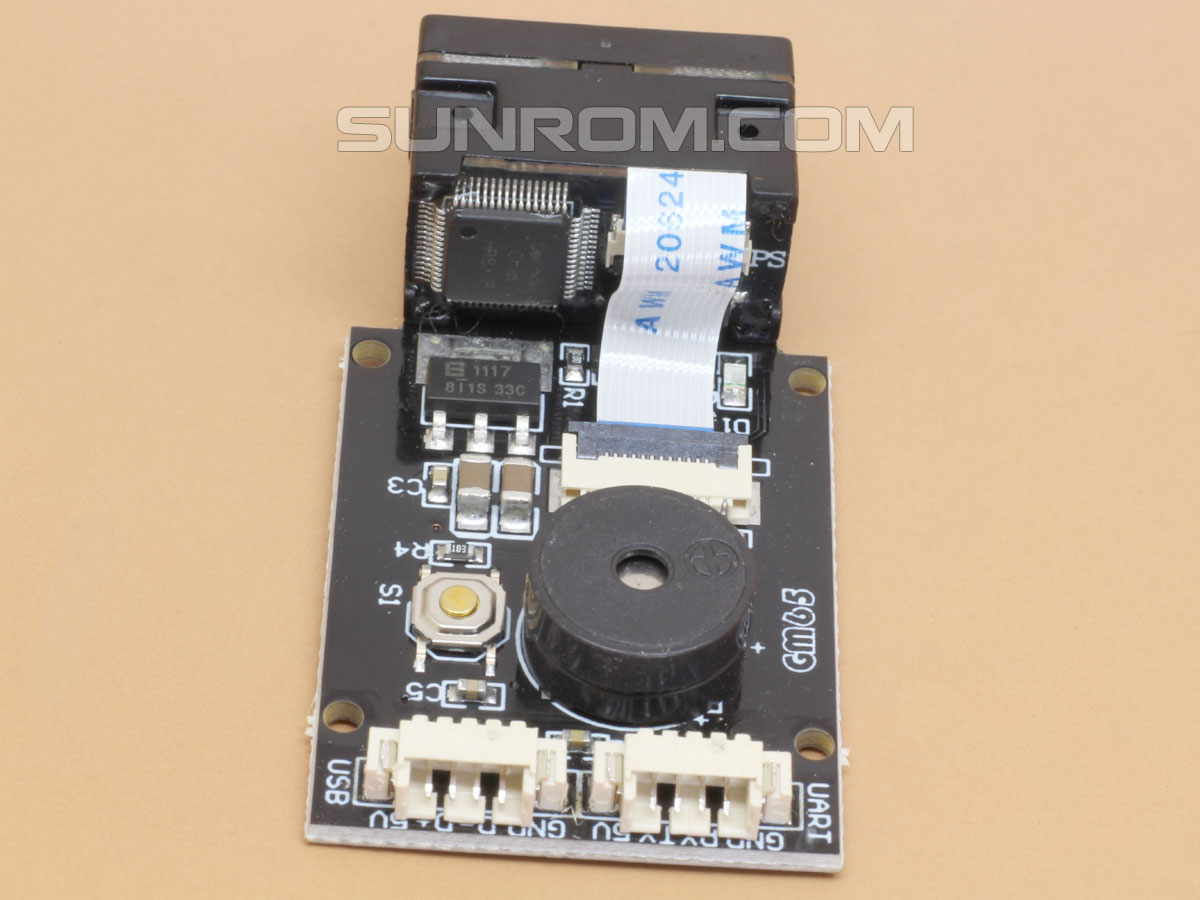

GM65 + Interface Board 1D/QR/2D Bar Code Scanner QR Code Reader

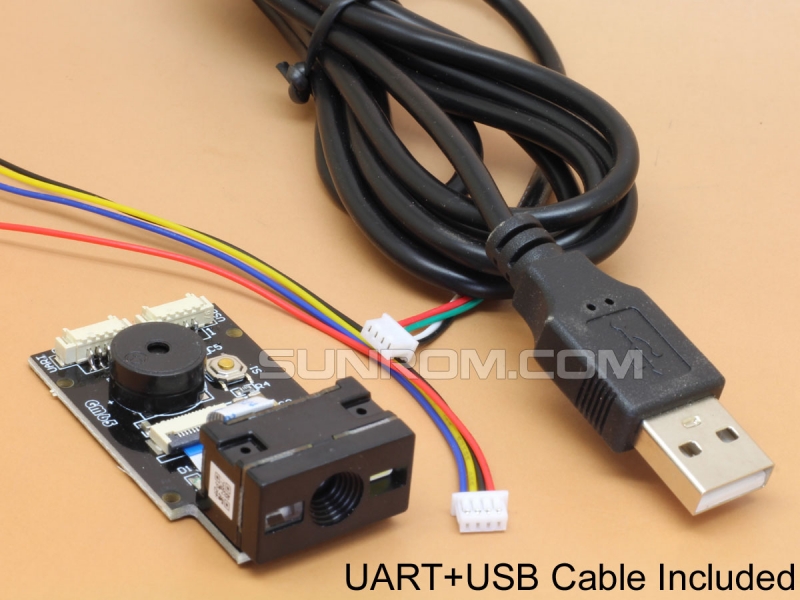

Excellent performance Barcode reader for 1D and 2D barcodes with 12 pin 0.5mm FFC cable USB+UART Output

Product Code 6176

Lead Time: 15 days
If you order today, We can dispatch by
09-May-2024

Downloads

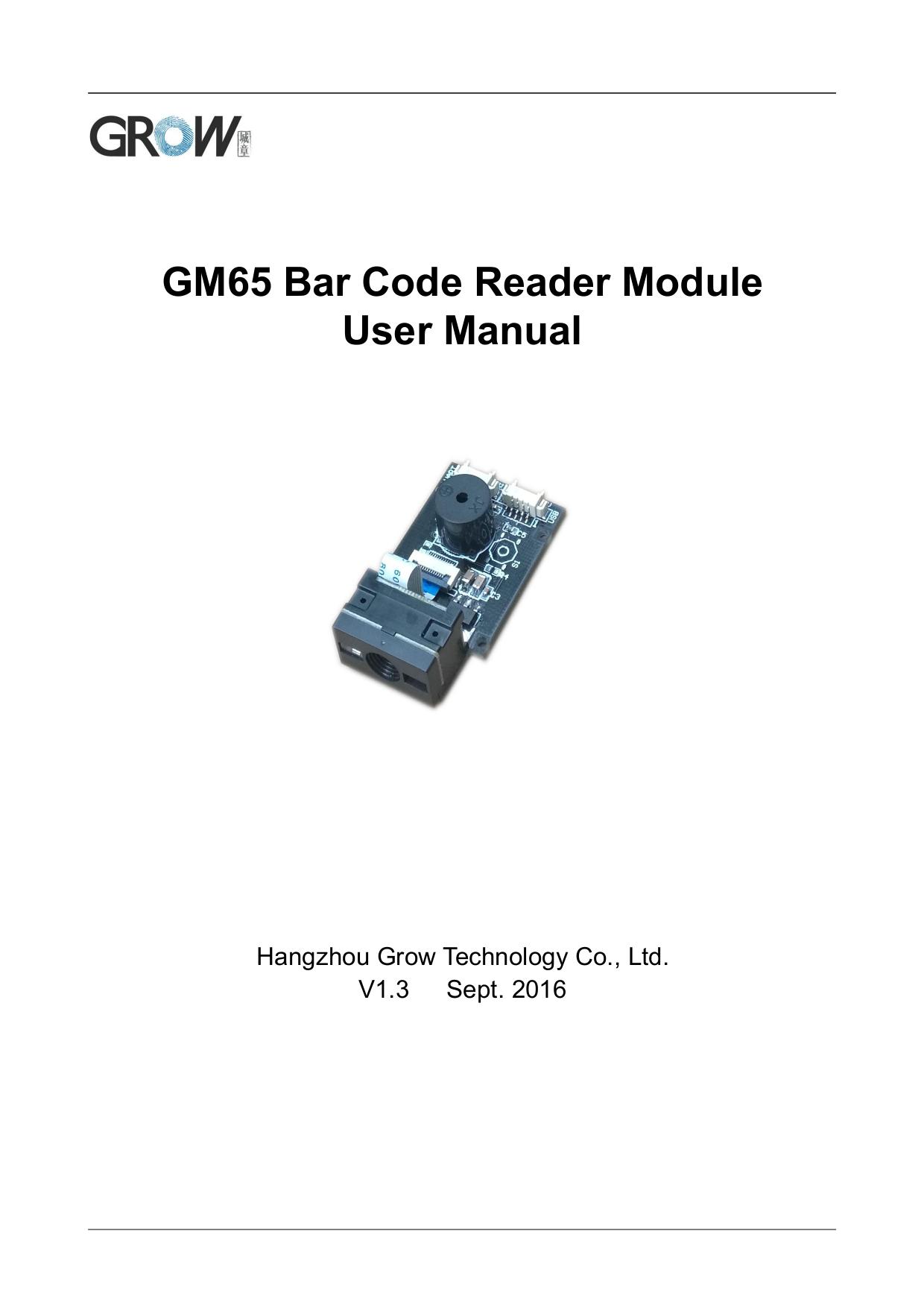

GM65 Datasheet
GM65 + Interface Board 1D/QR/2D Bar Code Scanner QR Code Reader
Sunrom Product Code for Ordering:
6176

GM65 scanning device module has low power consumption, working current less than 150mA, integrated design and small size;

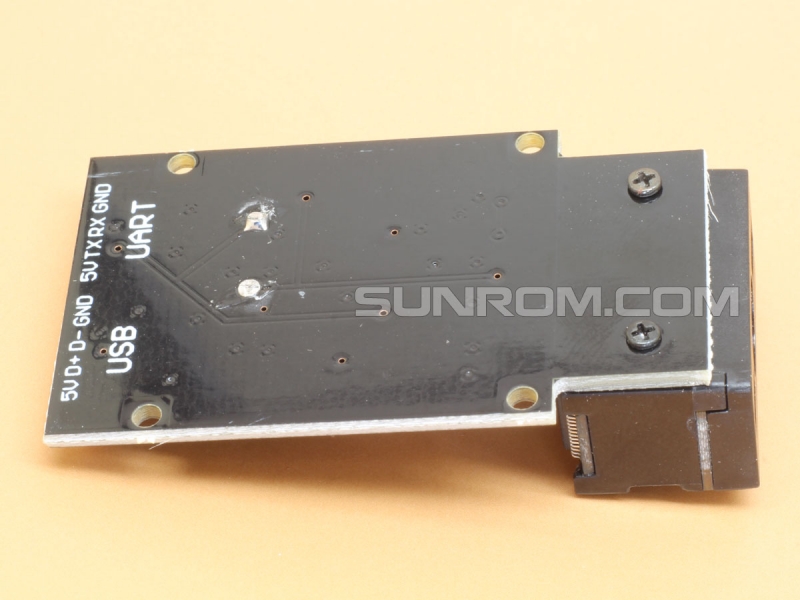

Support TTL232 and USB (HID or Virtual Serial Port) interface;

Support all common 1D barcodes and common 2D codes, Also can directly read barcode from the phone screen.

Supports Reading 1D barcode type ( 1D ): UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

Supports Reading 2D QR code type ( 2D ) : QR Code , PDF417, Data Matrix

The value read by the GM65 module can be directly displayed on a text file such as Notepad.

Please connect USB, find a barcode or QR code to scan (not the QR code in the manual), the place where you can input text on the computer will be displayed directly, such as notepad.

Technical Parameters

  • Optical system: CMOS
  • Capture light source: 617nm LED
  • Lighting source: 6500K LED
  • Reading angle: rotating 360 °
    • Deflection ± 60 °
    • Tilt ± 65°
  • Scanning angle: 34 ° (horizontal) 26 ° (vertical)
  • Minimum contrast: 30%
  • Resolution: ≥ 0. 1mm (4mil)
  • Voltage: DC 5V
  • Current: 120mA during scanning / 30mA during standby
  • Interface: USB, UART (HID or VSP)
  • Working temperature: Temperature: 0°C~50 °C
  • Storage temperature: -40 °C ~ 70 °C
  • Working humidity: 10% to 80%
  • Ambient light: Ambient light: 0~86,000 lux
