CR2032 Battery
3V output, Low cost, Usually used in RTC time keeping applications
Product Code 3842
Quantity Pricing
Quantity :
Price (Discount%)
1-49 :
Rs.16.00/- (0%)
50-99 :
Rs.15.20/- (5%)
100-499 :
Rs.14.40/- (10%)
500-999 :
Rs.14.08/- (12%)
1000+ :
Rs.13.60/- (15%)

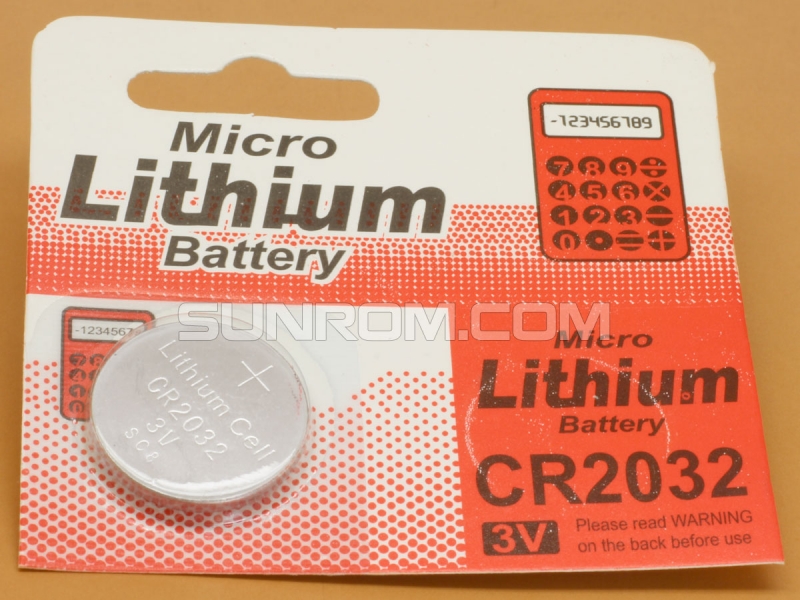

CR2032 Battery
Sunrom Product Code for Ordering:
3842
Specification
- Model : CR2032
- System : Manganese dioxide–Li/Organic Electrolyte
- Nominal Voltage : 3V
- Battery life : approx 150 hours
- Nominal Capacity : 220mAH
- Nominal Discharge Current : 0.2mA
- Operating Temperature Range : –20 to +85 deg. C
- Weight : 3.0gm
- Dimensions : Diameter 20.0, Height 2.5mm.
* Nominal capacity indicates duration until the voltage drops down to 2.0V when discharged at a nominal discharge current at 20 deg. C.
*Dimensions and weight are for the battery itself, but may vary depending on the shape of terminals or other factors.
