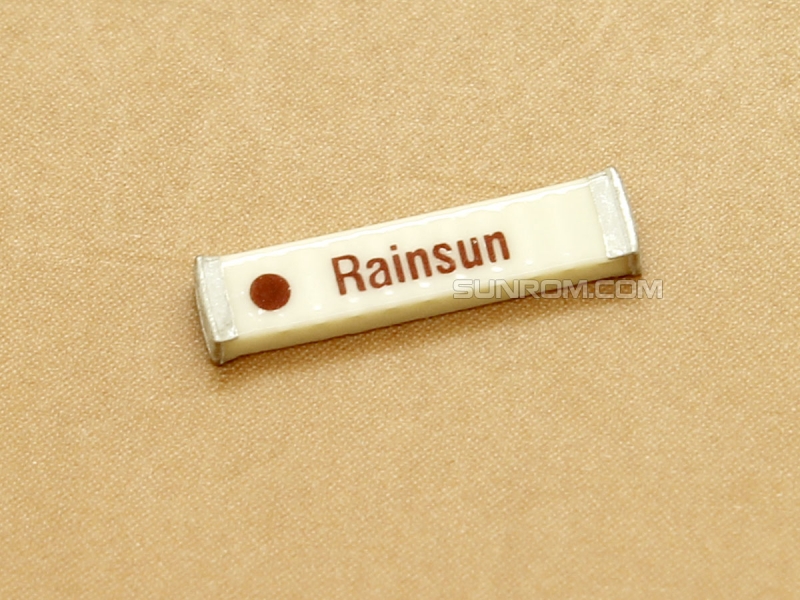

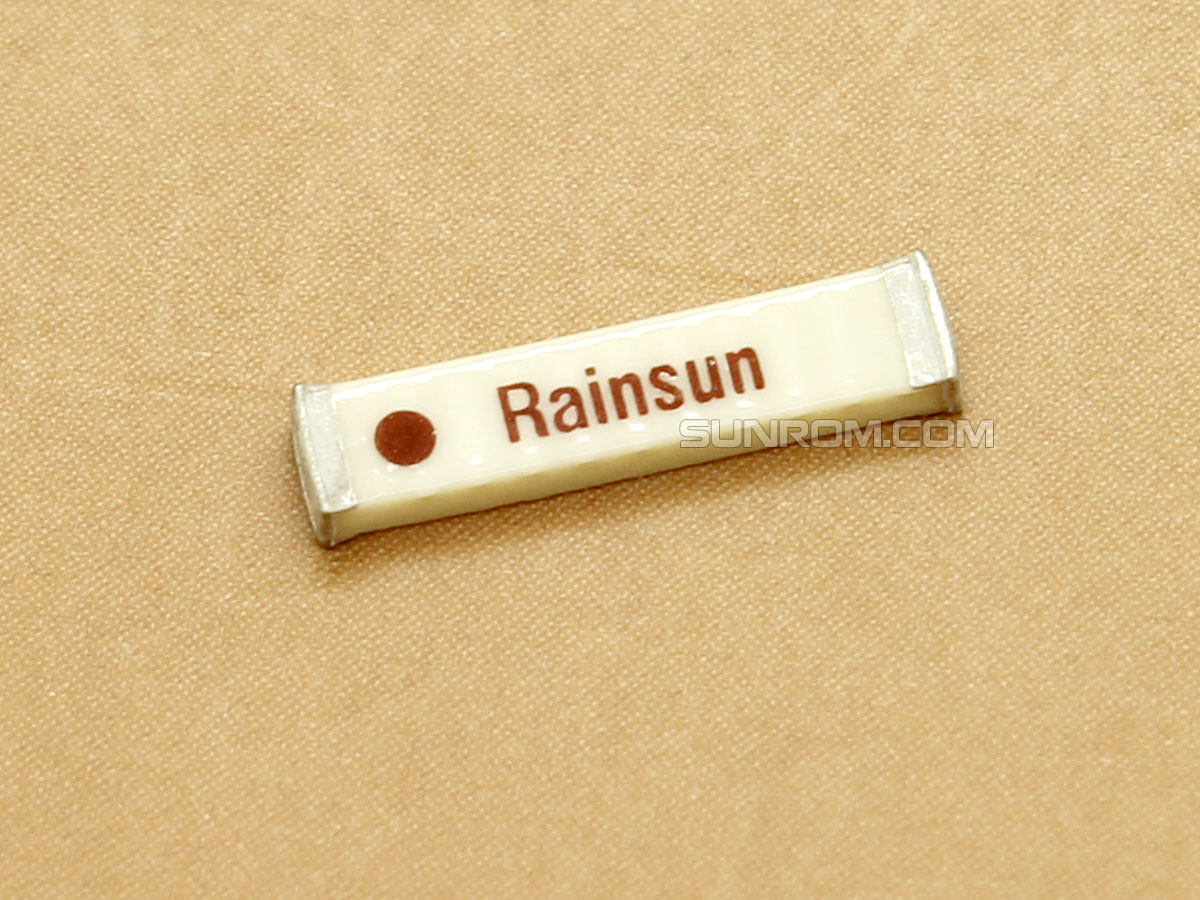

AN9520-245 2.4GHz Rainsun Ceramic Chip Antenna - Omnidirectional - Bluetooth - WIFI - 9mm
Internal Antenna PCB Mount for Bluetooth, ZigBee, WLAN antenna, SMD 9.5x2.0x1.0mm, 2.45-2.5GHz
Product Code 5553
Available
We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 84 nos.
Factory Leadtime for more quantity: 15 days.
If you order more than 84, We will send two packages, right now available stock and remaining in 15 days
Quantity Pricing
Quantity :
Price
1-4 :
Rs.41.30/-
5-9 :
Rs.40.06/-
10-24 :
Rs.38.41/-
25-49 :
Rs.37.17/-
50-74 :
Rs.36.34/-
75-99 :
Rs.35.11/-
100-249 :
Rs.33.87/-
250-499 :
Rs.33.04/-
500-999 :
Rs.32.21/-
1000+ :
Rs.30.98/-
Downloads

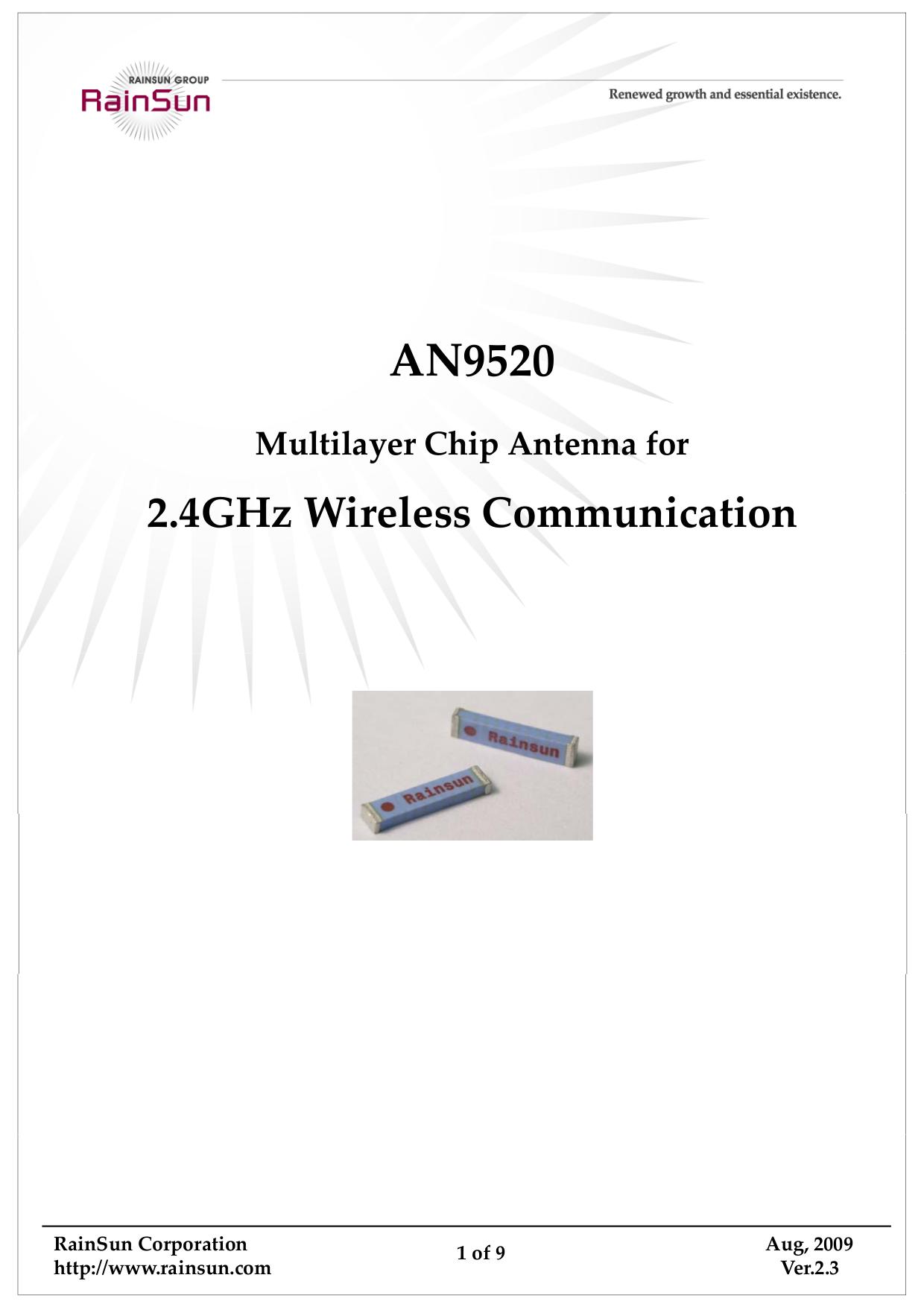

AN9520 Datasheet
AN9520-245 2.4GHz Rainsun Ceramic Chip Antenna - Omnidirectional - Bluetooth - WIFI - 9mm
Sunrom Product Code for Ordering:
5553
Manufacturer: RAINSUN
Manufacturer code: AN9520-245
Version: chip
Frequency: 2.45GHz
Gain: 1.5dBi
Mounting: SMD
Impedance: 50Ω
Polarisation: linear
Operation temperature: -40 ~ +85 °C
Dimensions: 9.5mm(L)X2.1mm(W)X1.0mm(H)
