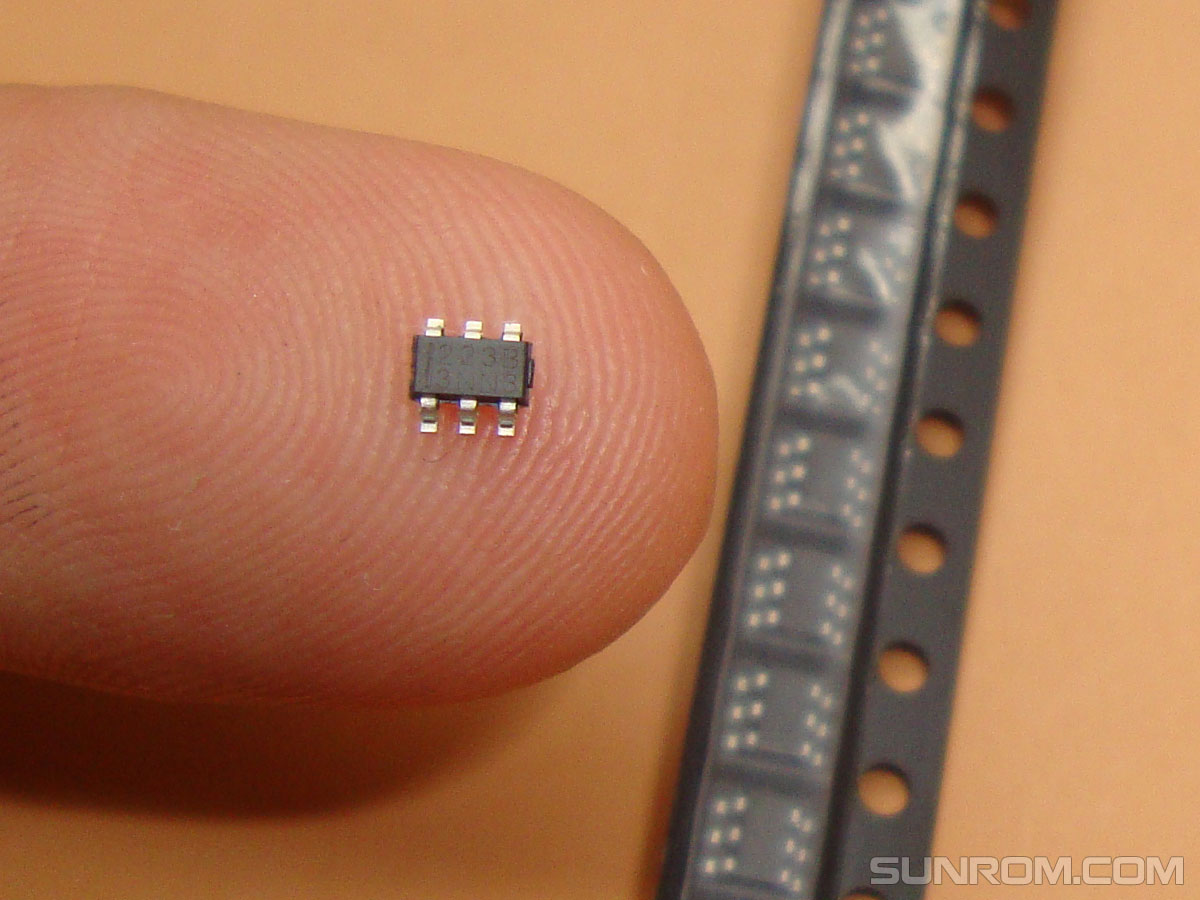

TTP223-BA6

Single Channel Capacitive Touch Sensing IC

Sunrom Part# 4480

Available We dispatch same day if ordered by 4PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 922 nos.

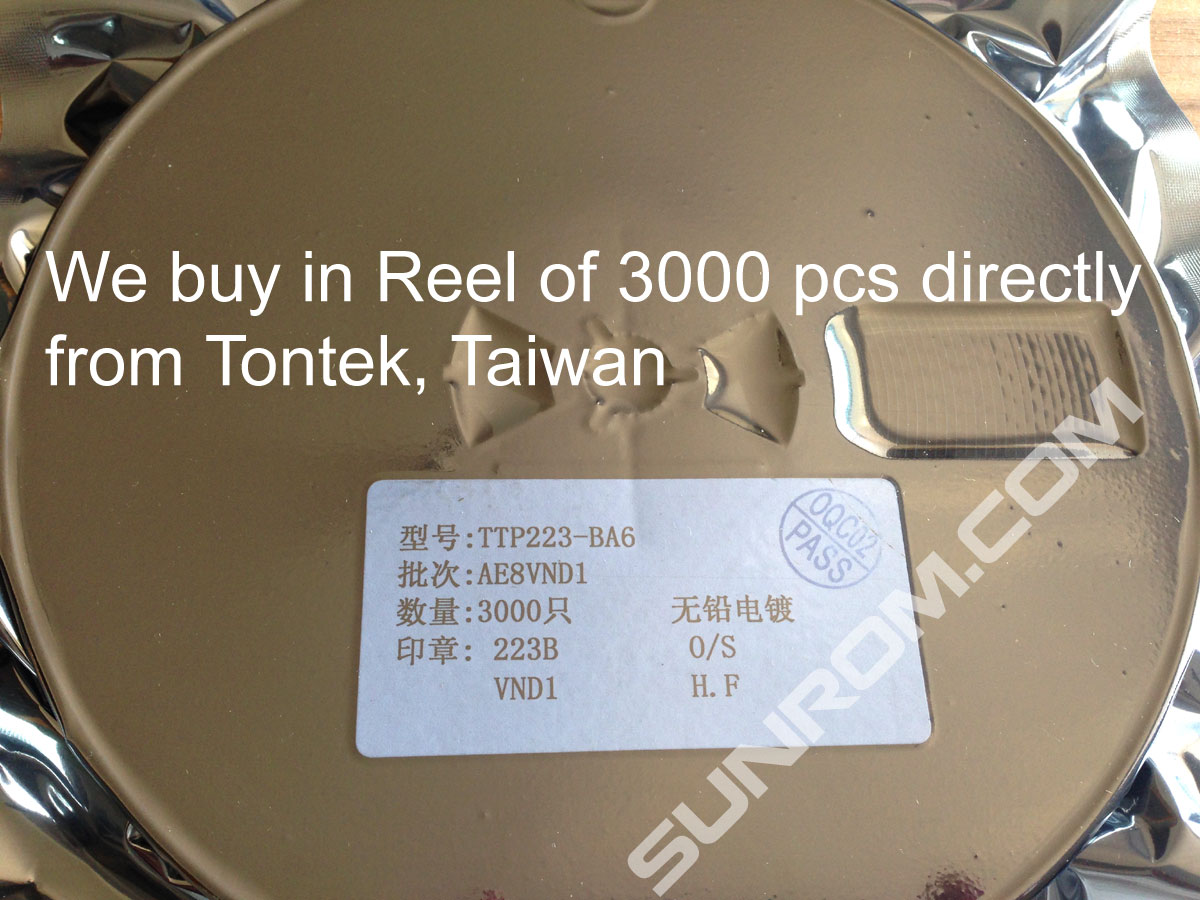

On Purchase: 3000 nos.
Expected on: 26-Dec-2017
Quantity Pricing
Quantity :
Price (Discount%)
1-4 :
Rs.15.00/- (0%)
5-9 :
Rs.14.55/- (3%)
10-24 :
Rs.13.95/- (7%)
25-49 :
Rs.13.50/- (10%)
50-74 :
Rs.13.20/- (12%)
75-99 :
Rs.12.75/- (15%)
100-249 :
Rs.12.30/- (18%)
250-499 :
Rs.12.00/- (20%)
500-999 :
Rs.11.70/- (22%)
1000+ :
Rs.11.25/- (25%)

Downloads

TTP223 Datasheet

We also have a demo board for this single channel capacitive touch IC.

Features

  • Simple to Use, Auto Calibration
  • Output can configured be Active High or Low
  • Output Mode can be configured to Toggle or Momentary
  • Easy to replace mechanical key outputs
  • Output can be directly connected to Microcontroller's Input pins

Specification

  • Operating Voltage: 2V-5.5V
  • Startup Calibration Delay: 0.5 Sec

Application Schematic



Commercial Solid State solution using TTP223 IC to replace Dome, Membrane & Mechanical Keypads
