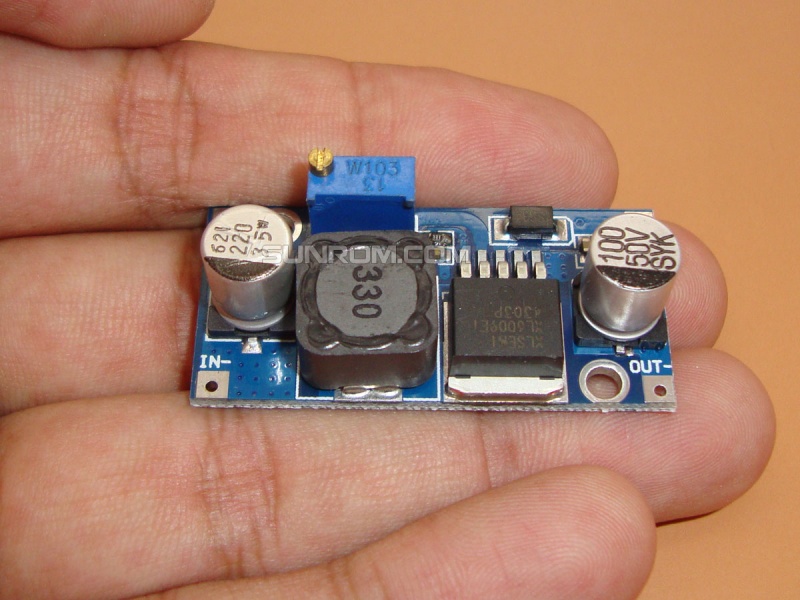

DC-DC Step Up Boost 4A - XL6009

In = 5-32V / Out = 5-35V @ 4A Switching Regulator (Boost = Output Voltage has to be higher than input voltage)

Sunrom Part# 4316

No Stock.
Currently this item is not available for ordering.
Real Time Availability
On Purchase: 25 nos.
Expected on: 27-Aug-2017
Quantity Pricing
Quantity :
Price (Discount%)
1-4 :
Rs.280/- (0%)
5-9 :
Rs.272/- (3%)
10-24 :
Rs.260/- (7%)
25-49 :
Rs.252/- (10%)
50-74 :
Rs.246/- (12%)
75-99 :
Rs.238/- (15%)
100-249 :
Rs.230/- (18%)
250-499 :
Rs.224/- (20%)
500-999 :
Rs.218/- (22%)
1000+ :
Rs.210/- (25%)

Downloads

XL6009E1 Datasheet

This DC-DC Module is based on IC XL6009E1 which is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip that offers superior performance over the first generation technology LM2577. XL6009 replaces LM2577 module as LM2577 is about to be phased out.

Features

  • Wide input voltage range of 3V – 32V (optimum operating voltage range is 5 – 32V)
  • Wide Output voltage range of 5V – 35V (Adjustable using on board preset)
  • Built in 4A MOSFET switches enables efficiency of up to 94% (LM2577 current is 3A)
  • High switching frequency of 400KHz, can use a small-capacity filter capacitors that can achieve very good results (LM2577 switching frequency is only 50KHz)



Specifications

Value

Type

Non-Isolated Boost ( BOOST )

Rectification

Non-synchronous rectification

Input Range

3V ~ 32V

Output Range

5V ~ 35V

Input Current

4A (maximum), load 18mA ( 5Vinput, 8V output, no-load is less than 18mA . The higher the voltage, the load current increases.)

Conversion efficiency

<94% (the greater the current, the lower the efficiency)

Switching frequency

400KHz

Output ripple

50mV (the higher the voltage, the greater the current, the greater ripple)

Load Regulation

± 0.5%

Voltage Regulation

± 0.5%

Working temperature

-40 ° C ~ +85 ° C

Dimensions

43mm * 21mm * 14mm (length * width* height)

Pins

  • IN+ input positive
  • IN- input negative!
  • OUT+ output positive
  • OUT- output negative

Module Schematic

Dimensions
