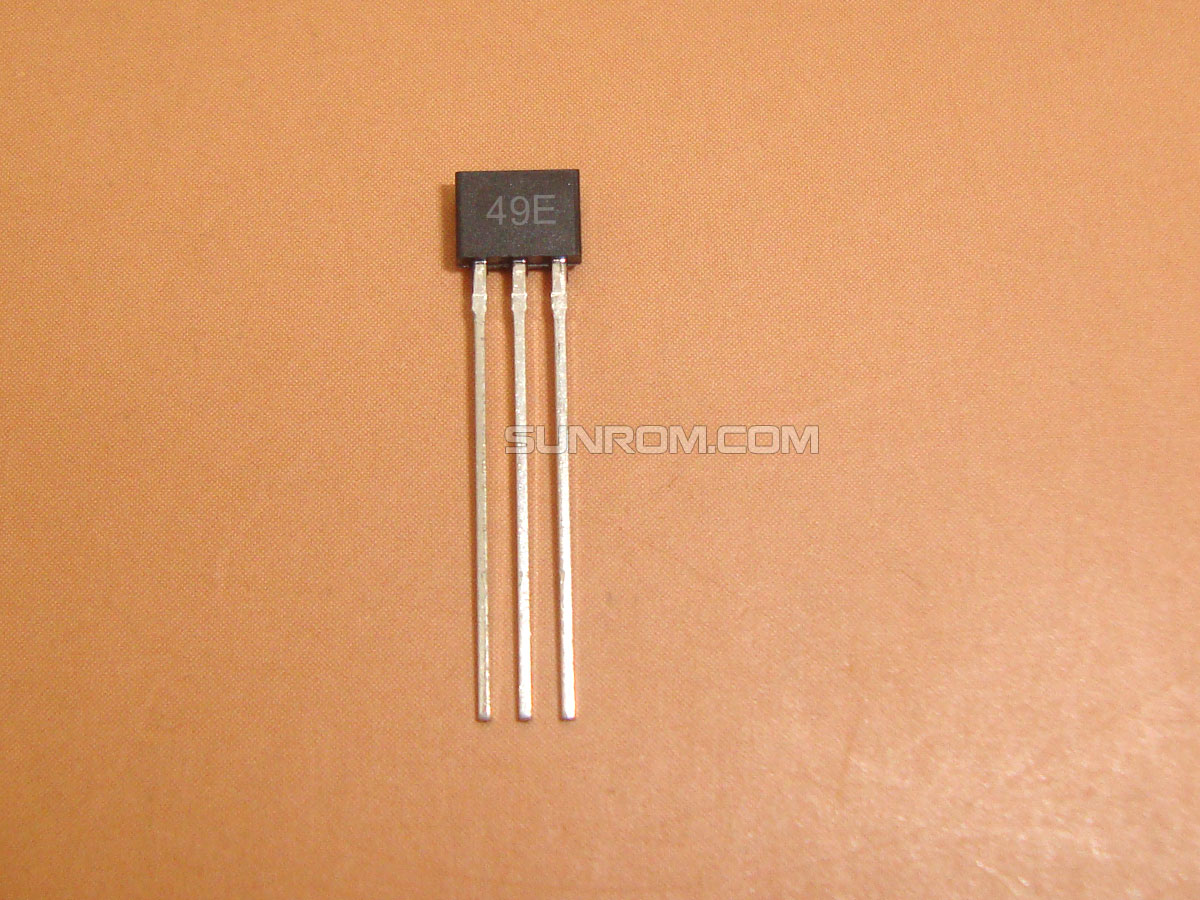

SS49E - Hall Sensor - Linear Analog

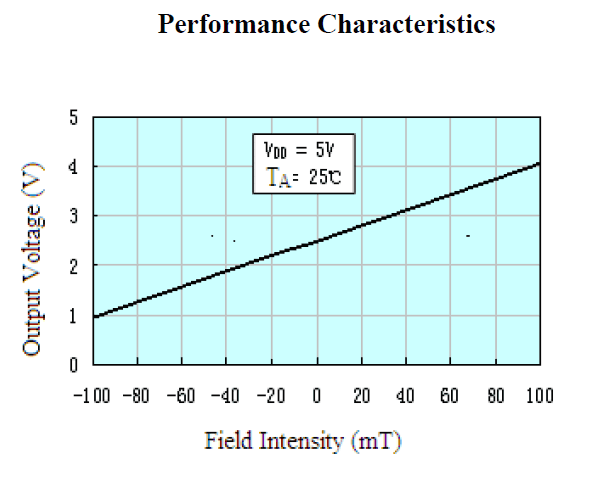

Outputs analog voltage proportional to magnetic field intensity. VCC=3V-6V, Sensitivity 1.8mV/G

SS49E - Hall Sensor - Linear Analog

Sunrom Part# 4076

No Stock.
Currently this item is not available for ordering.
Real Time Availability
On Purchase: 25 nos.
Expected on: 22-Dec-2017
Quantity Pricing
Quantity :
Price (Discount%)
1-4 :
Rs.38.00/- (0%)
5-9 :
Rs.36.86/- (3%)
10-24 :
Rs.35.34/- (7%)
25-49 :
Rs.34.20/- (10%)
50-74 :
Rs.33.44/- (12%)
75-99 :
Rs.32.30/- (15%)
100-249 :
Rs.31.16/- (18%)
250-499 :
Rs.30.40/- (20%)
500-999 :
Rs.29.64/- (22%)
1000+ :
Rs.28.50/- (25%)

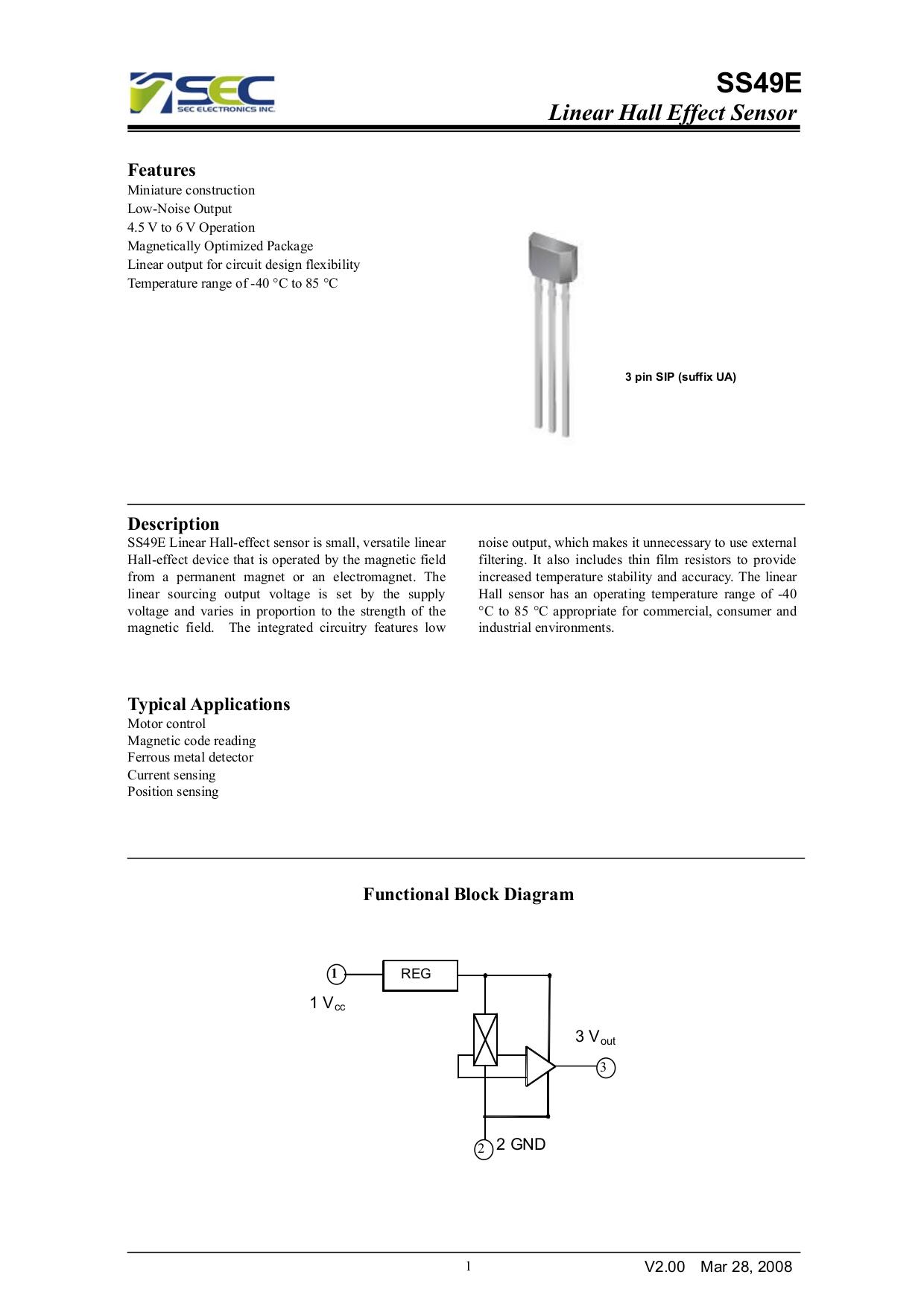

SS49E Datasheet

SS49E Linear Hall-effect sensor is small, versatile linear Hall-effect device that is operated by the magnetic field from a permanent magnet or an electromagnet. The linear sourcing output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. The integrated circuitry features low noise output, which makes it unnecessary to use external filtering. It also includes thin film resistors to provide increased temperature stability and accuracy. The linear Hall sensor has an operating temperature range of -40 °C to 85 °C appropriate for commercial, consumer and industrial environments.

Typical Applications

  • Motor control
  • Magnetic code reading
  • Ferrous metal detector
  • Current sensing
  • Position sensing

To Check Place it close to current carrying cable and it will give out analog voltage or bring a magnet near.
