RC5 Remote Decoder Serial Out
5V operation, Decodes any Infrared remote having RC5 philips prototol, giving out decoded key as serial uart data.
Product Code 1142
RC5 Remote Decoder Serial Out
Sunrom Product Code for Ordering:
1142

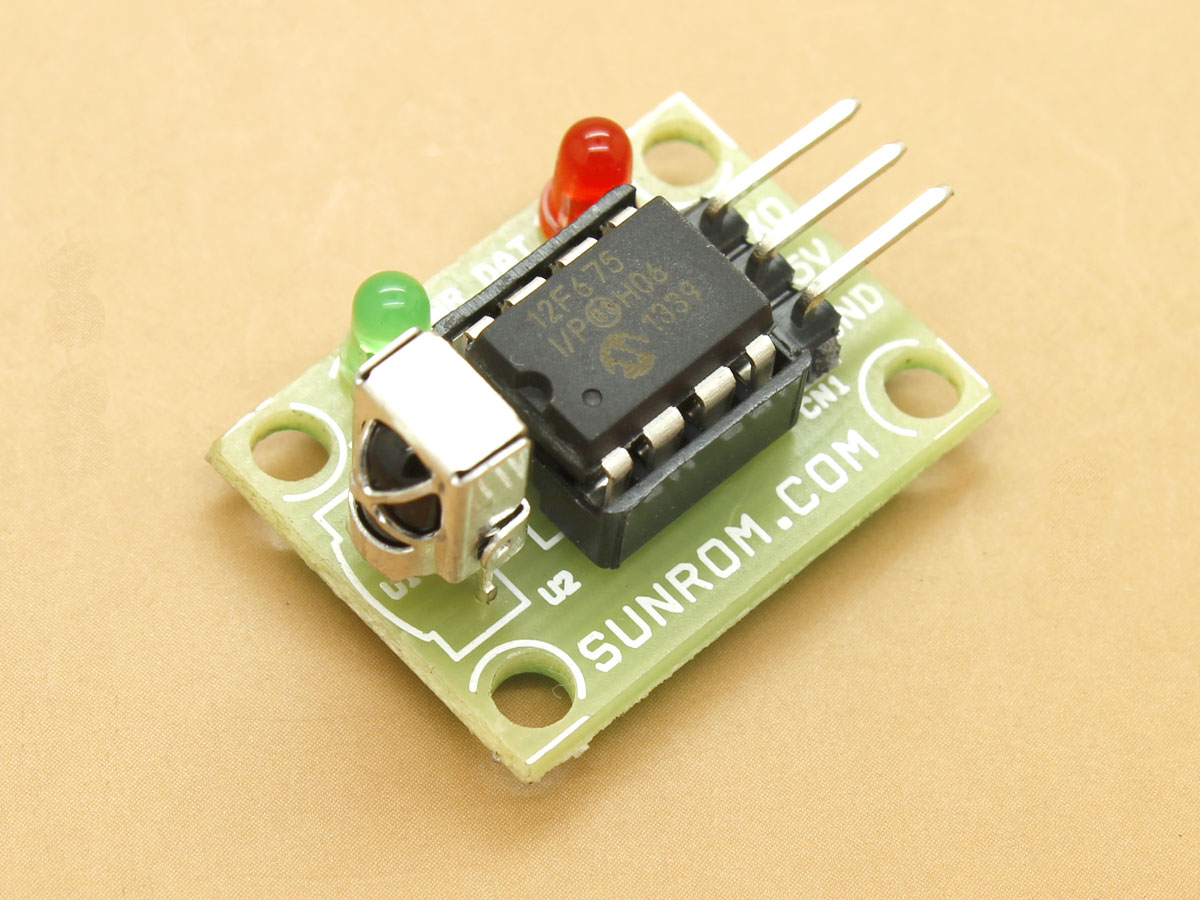

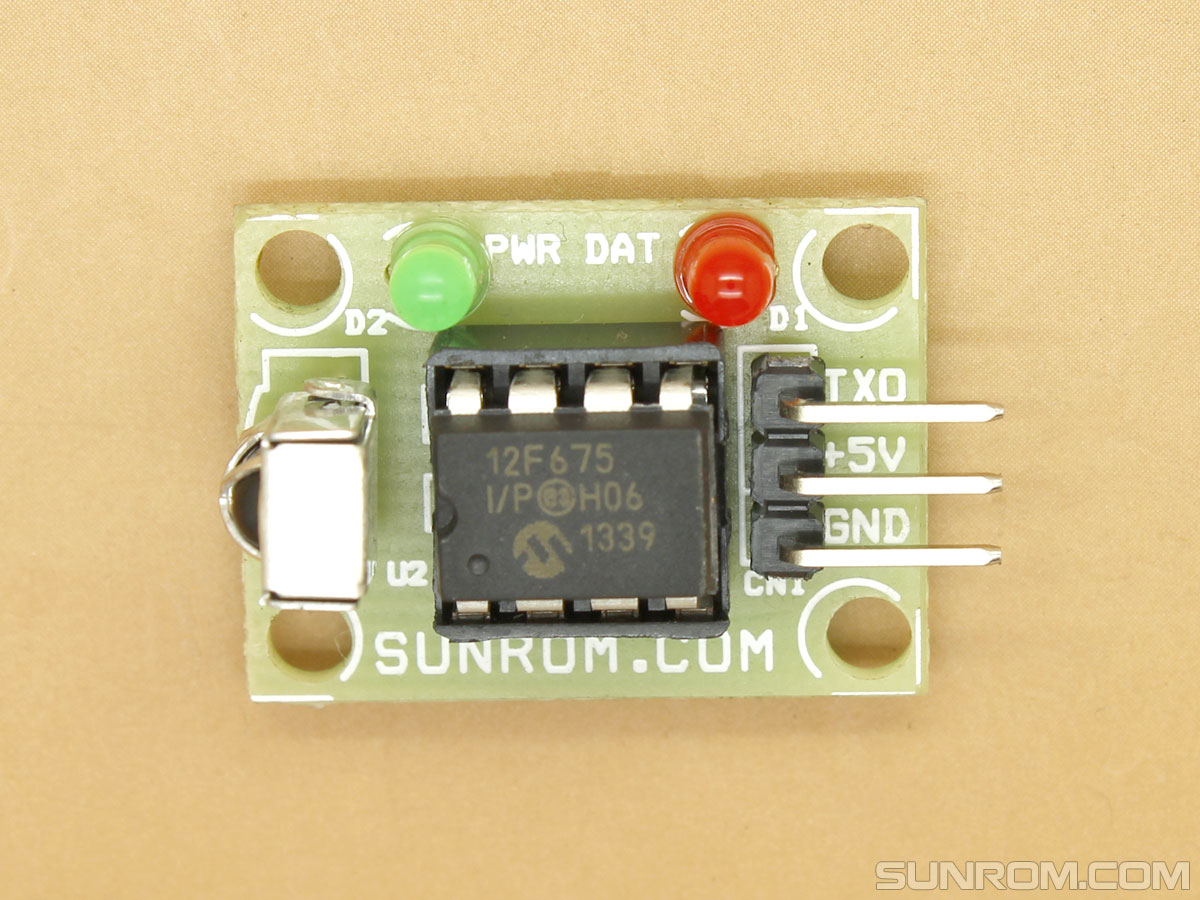

The RC5 remote decoder board is based on the IC ST3617 which decodes the received remote control data and output 16 bit serial data output. The decoded data contains various information like Toggle Bit, Address of Remote and Command Key Pressed. This decoded information from transmitter can be used in various ways to make any remote controlled application.
Board Schematic
