NEC Remote Decoder Serial Out
5V operation, Decodes any Infrared remote having NEC prototol, giving out decoded key as serial uart data.
Product Code 3812
Downloads

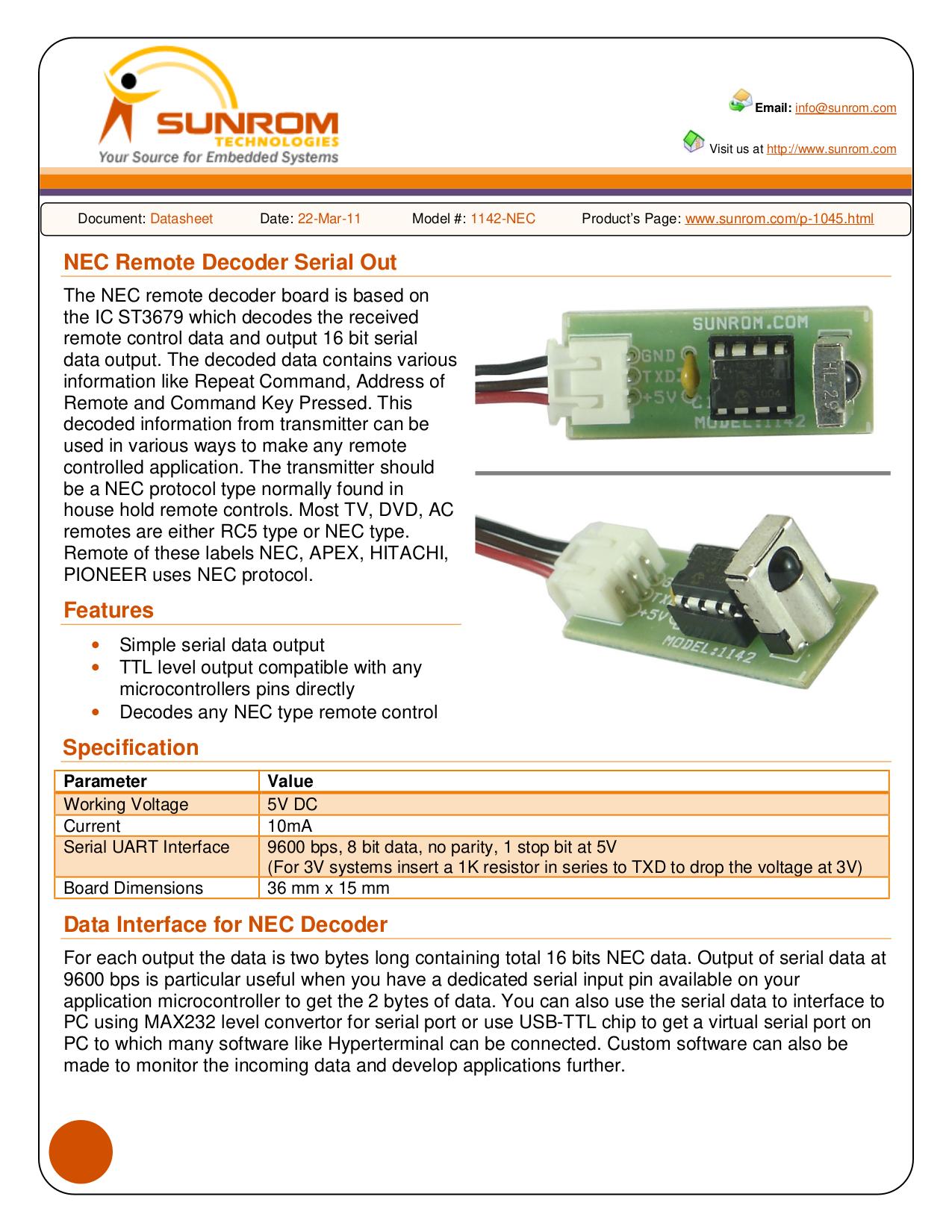

3812 Datasheet
NEC Remote Decoder Serial Out
Sunrom Product Code for Ordering:
3812

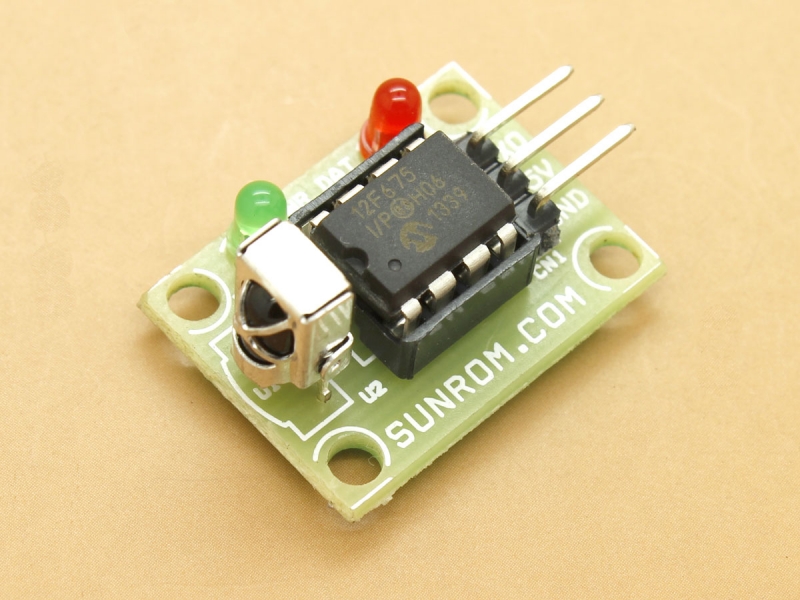

The NEC remote decoder board is based on the IC ST3679 which decodes the received remote control data and output 16 bit serial data output. The decoded data contains various information like Repeat Command, Address of Remote and Command Key Pressed. This decoded information from transmitter can be used in various ways to make any remote controlled application.
Board Schematic
The transmitter should be a NEC protocol type normally found in house hold remote controls. Most TV, DVD, AC remotes are either RC5 type or NEC type. Remote of these labels NEC, APEX, HITACHI, PIONEER uses NEC protocol.
