I2C LCD Backpack - PCF8574

Convert any standard 16 pin LCDs like 8x1, 8x2, 16x2, 16x4 and 20x4 LCDs with this I2C backpack. Easy to use and occupies just 2 MCU I/O.

Sunrom Part# 4585

Available We dispatch same day if ordered by 4PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 2 nos.
Factory Leadtime for more quantity: 15 days
Quantity Pricing
Quantity :
Price (Discount%)
1-4 :
Rs.98/- (0%)
5-9 :
Rs.95/- (3%)
10-24 :
Rs.91/- (7%)
25-49 :
Rs.88/- (10%)
50-74 :
Rs.86/- (12%)
75-99 :
Rs.83/- (15%)
100-249 :
Rs.80/- (18%)
250-499 :
Rs.78/- (20%)
500-999 :
Rs.76/- (22%)
1000+ :
Rs.74/- (25%)

Board Schematic

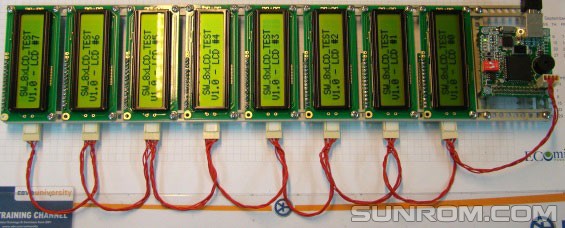

With the I2C address setting, you can run multiple LCDs on same I2C bus. (With all jumpers off the default address is 0x27)

Dimensions: 41.5mm (length) * 19mm (width) * 15.3mm (H)

Board Operating voltage: 2.5V to 6V (If your LCD only works on 5V then you should use only 5V)

LCD Pin vs PCF8574A Pin Mapping

BL-EN-RW-RS-D4-D5-D6-D7  =  3-2-1-0-4-5-6-7
