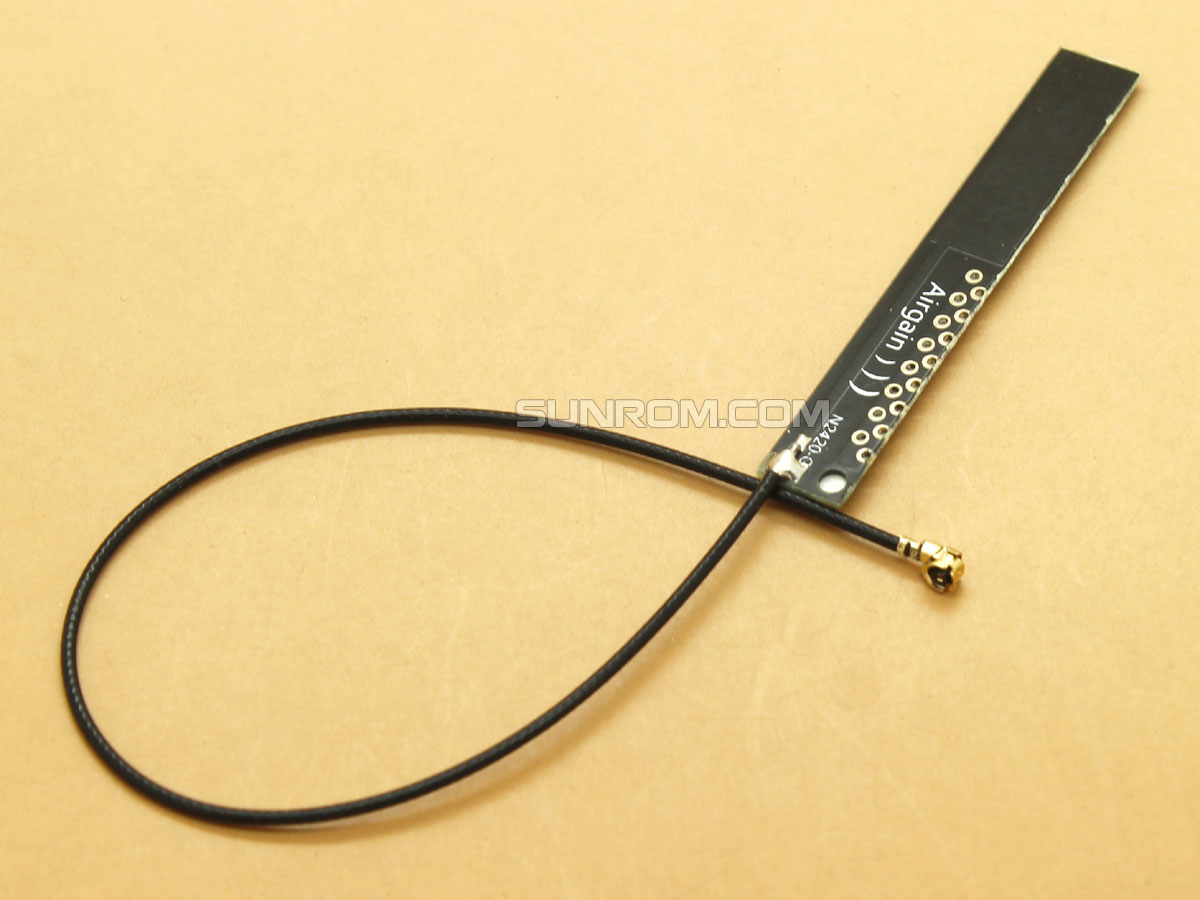

2.4 Ghz 4DB Wifi Omnidirectional Antenna - IPEX/IPX

Sunrom Part# 5347

Available We dispatch same day if ordered by 4PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 50 nos.
Factory Leadtime for more quantity: 15 days
Quantity Pricing
Quantity :
Price
1-49 :
Rs.95/- (0%)
50-99 :
Rs.90/- (5%)
100-499 :
Rs.86/- (10%)
500-999 :
Rs.81/- (15%)
1000+ :
Rs.76/- (20%)

Network type: IEEE 802.11n or 802.11 b / g / WIFI
Frequency range: 2.4 to 2.49 GHz
Maximum gain: 4dBi (SONY adhesive)
Standing wave ratio: less than 1.5
Input impedance: 50 Ohms
Rated power: 30 dBm
Use feeder: 1.13mm wire length 150MM
Antenna interface: IPEX interface
Antenna size: 48MM * 7.4MM * 1.0MM
PStandard IEEE 802.11n and 802.11 b / g
Frequency Range 2.4 to 2.49 GHz
Peak Gain 4dBi
VSWR> 1.5
Feed Impedance 50 Ohms
Power Handling 30 dBm
Antenna Dimensions 48MM  * 7.4MM * 1.0 MM
