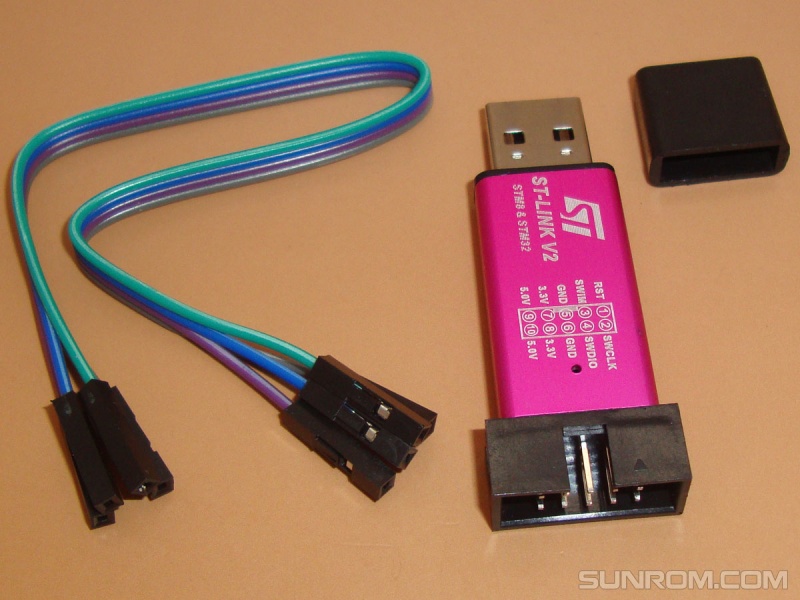

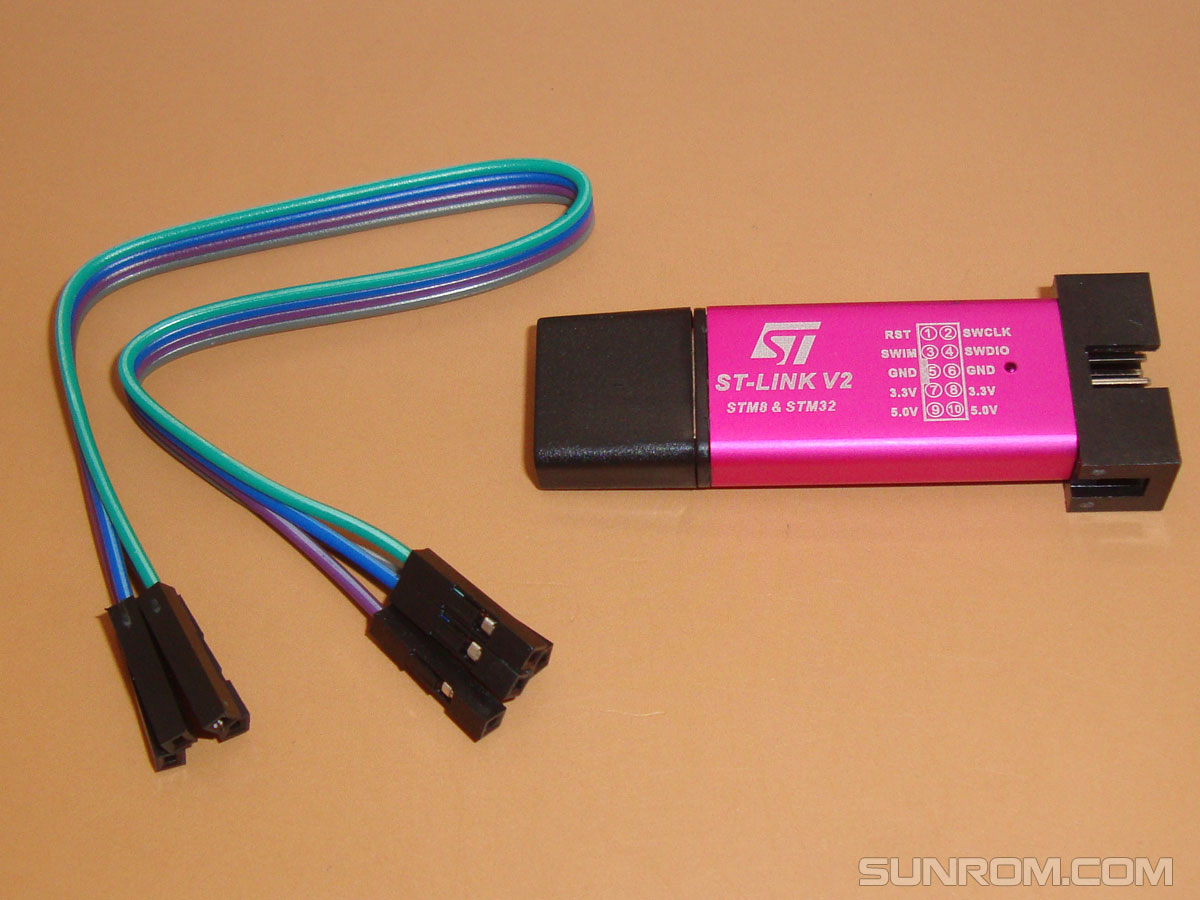

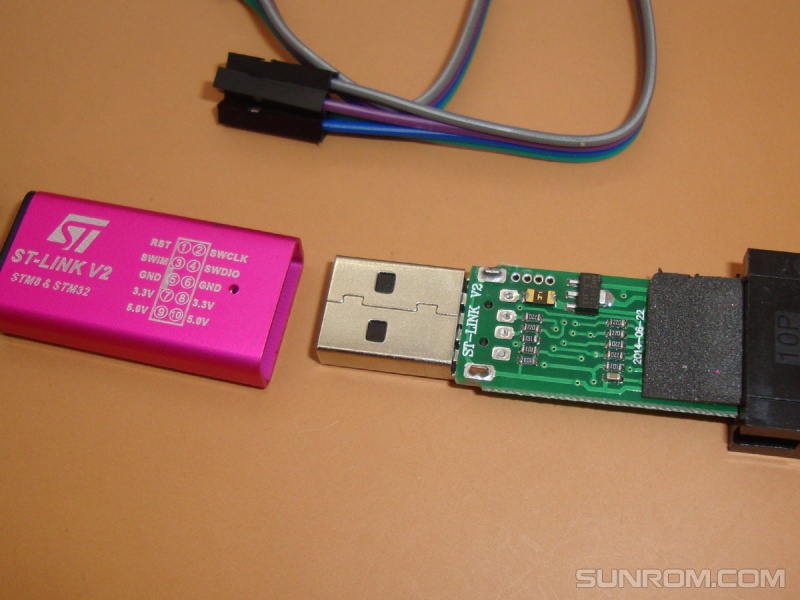

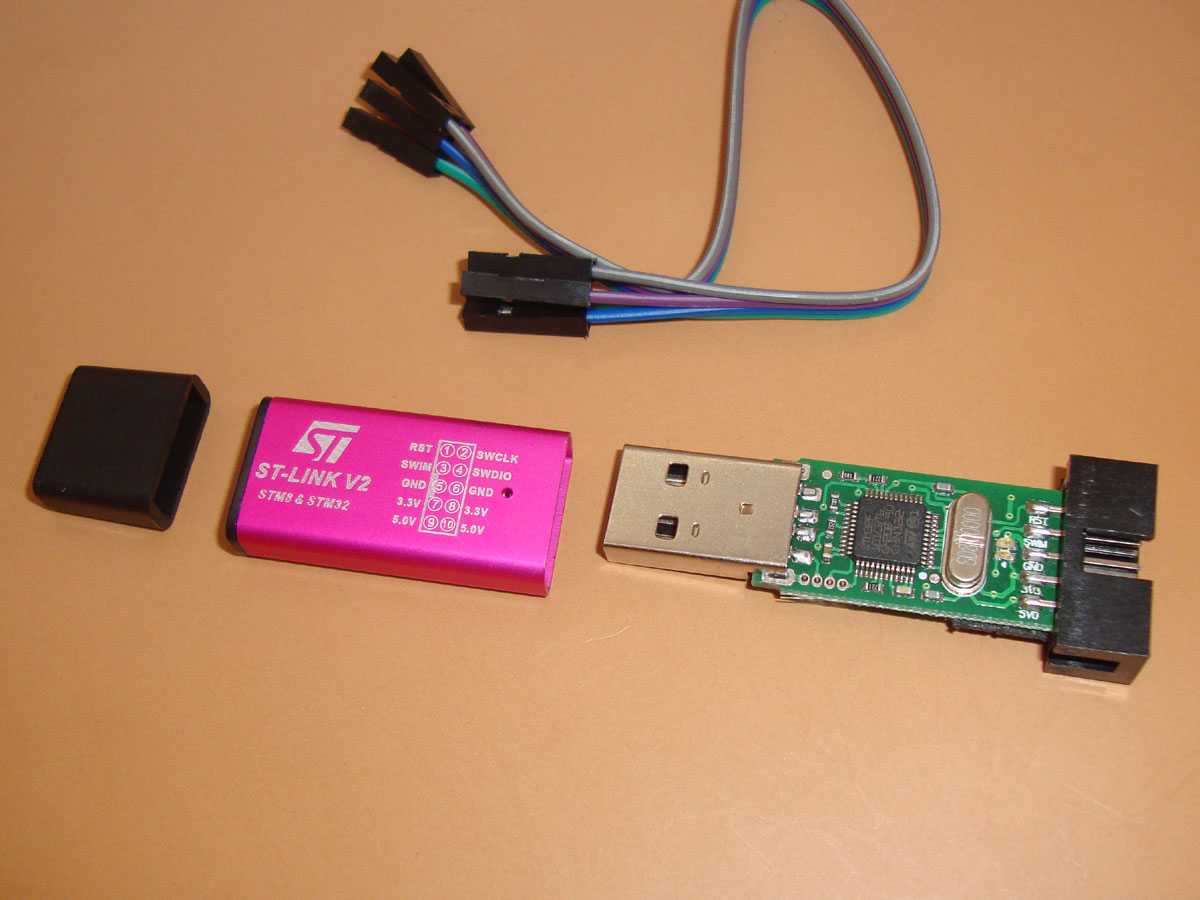

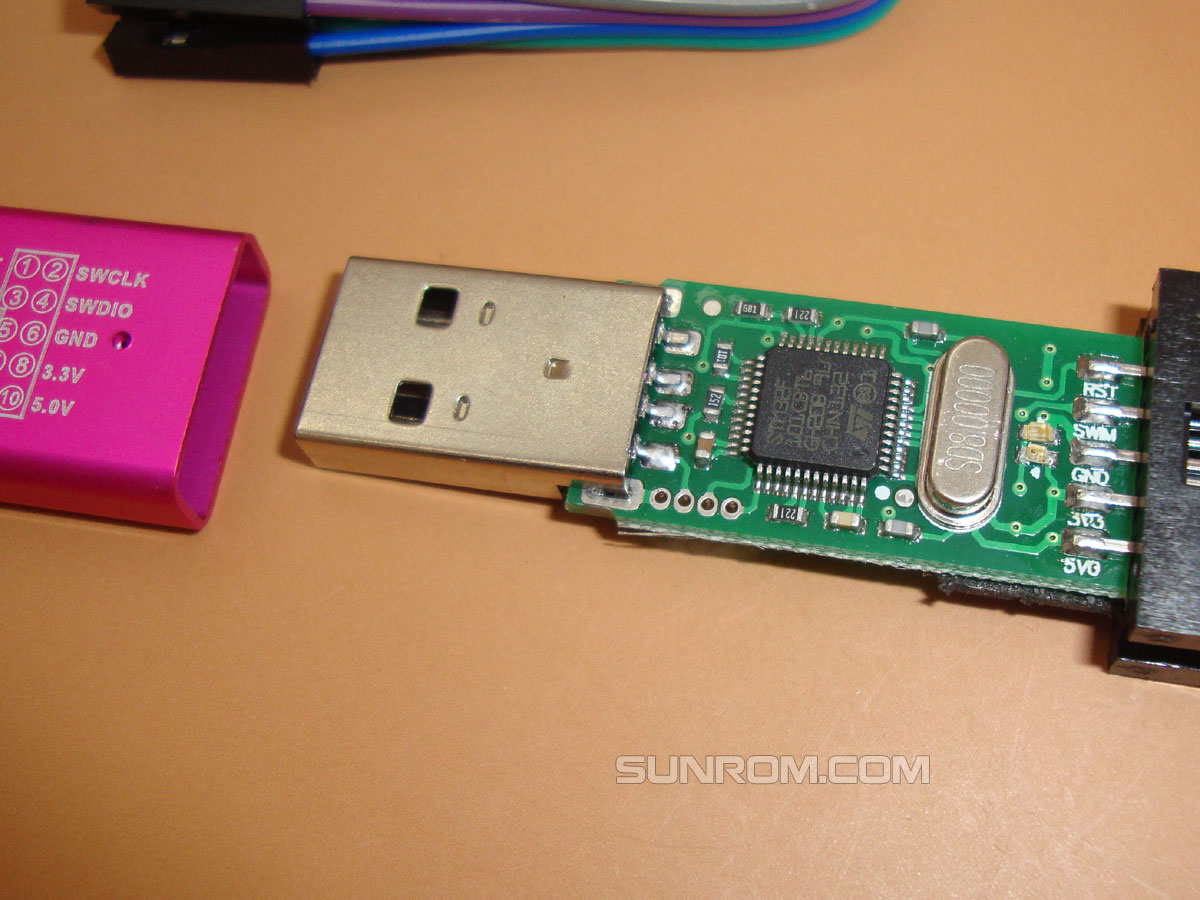

ST-Link V2

Debug and Programming of ARM STM8 STM32

Product Code 4497

Available We dispatch same day if ordered by 1PM (excluding holidays), then courier usually takes 2-5 days.
Real Time Availability
Ready Stock: 38 nos.
Factory Leadtime for more quantity: 15 days
ST-Link V2
Sunrom Product Code for Ordering:
4497

Implements Programming and Debugging interface for full range of STM8 (SWIM) and STM32 (SWD) series ARM microcontrollers.

Its identical to ST-link v2, only omits 20 pin JTAG interface and implements 4 wire debug and programming interface.

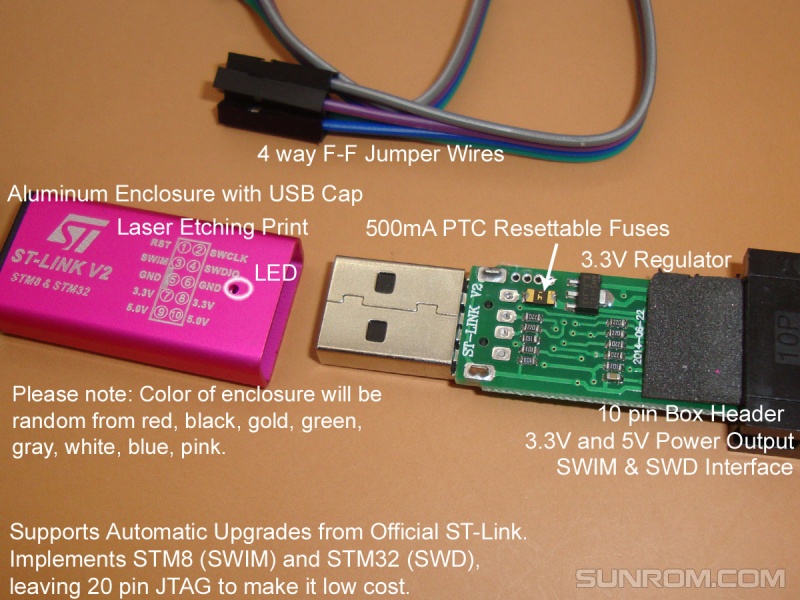

Features

  • Automatic upgrades from official ST-Link software
  • Indicator LEDs, Red and Blue
  • Aluminum Case
  • 3.3V and 5V Power Output
  • 500mA self-recover fuse to protect your USB Port
  • 20cm 4 way F-F Multicolor Jumper cable
  • Easy to use

Software Supported

  • ST-LINK Utility 2.0 and 4.2.1 above
  • STVD and above
  • STVP 3.2.3 and above
  • IAR EWARM V6.20 and above
  • IAR EWSTM8 V1.30 and above
  • KEIL RVMDK V4.21 and above (Can use Keil MDK 4.60+)

STVP

ST Visual Programmer for programming ST7, STM8 and STM32

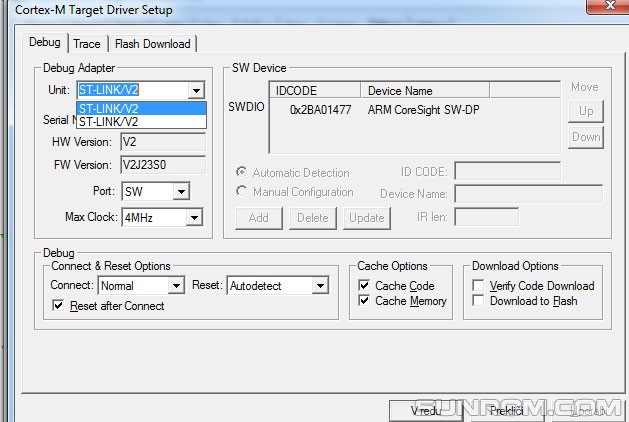

Keil MDK

Product Page

ST Link

Download

IAR STM8's debug probe Product Page

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

STM8 applications use the USB full speed interface to communicate with STMicroelectronic's ST Visual Develop (STVD) or ST Visual Program (STVP) software.

STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.

Key Features

  • 3.3V or 5V power supplied by a USB connector
  • USB 2.0 full speed compatible interface
  • SWIM specific features
    • SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
    • 1.65 V to 5.5 V application voltage supported on SWIM interface
    • SWIM low-speed and high-speed modes supported
    • SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
    • SWIM cable for connection to the application
  • Direct firmware update feature supported (DFU)
  • Status LED which blinks during communication with the PC
  • Operating temperature 0 to 50 °C

Supported Devices

Microcontrollers supported by STVP release 3.2.8:

Product line Microcontroller
STM32 STM32F100xx, STM32F101xx, STM32F102xx, STM32F103xx, STM32F105xx, STM32F107xx, STM32F2xxx, STM32F4xxx,

STM32L15xx6, STM32L15xx8,STM32L15xxB, STM32L151xC, STM32L151xD, STM32L152xC, STM32L152xD, STM32L162xD,

STM32TS60,

STM32W108C8, STM32W108xB, STM32W108xC, STM32W108xZ
STM8 STM8AF51x, STM8AF52x, STM8AF61x, STM8AF62x,STM8AH51x, STM8AH61x,

STM8S003K3, STM8S003F3, STM8S005C6, STM8S005K6, STM8S007C8, STM8S103xx, STM8S105xx, STM8S207xx, STM8S208xx, STM8S903F3, STM8S903K3,

STM8L101xx, STM8L15x, STM8L16x,

STM8TL52x4,STM8TL53x4

SW DRIVERS

While connecting the ST-LINK/V2 to the computer through USB interface, the USB driver is required and should be installed correctly first.

Click on the link below to download:

ST-LINK/V2 USB driver for Windows 7, Vista and XP
